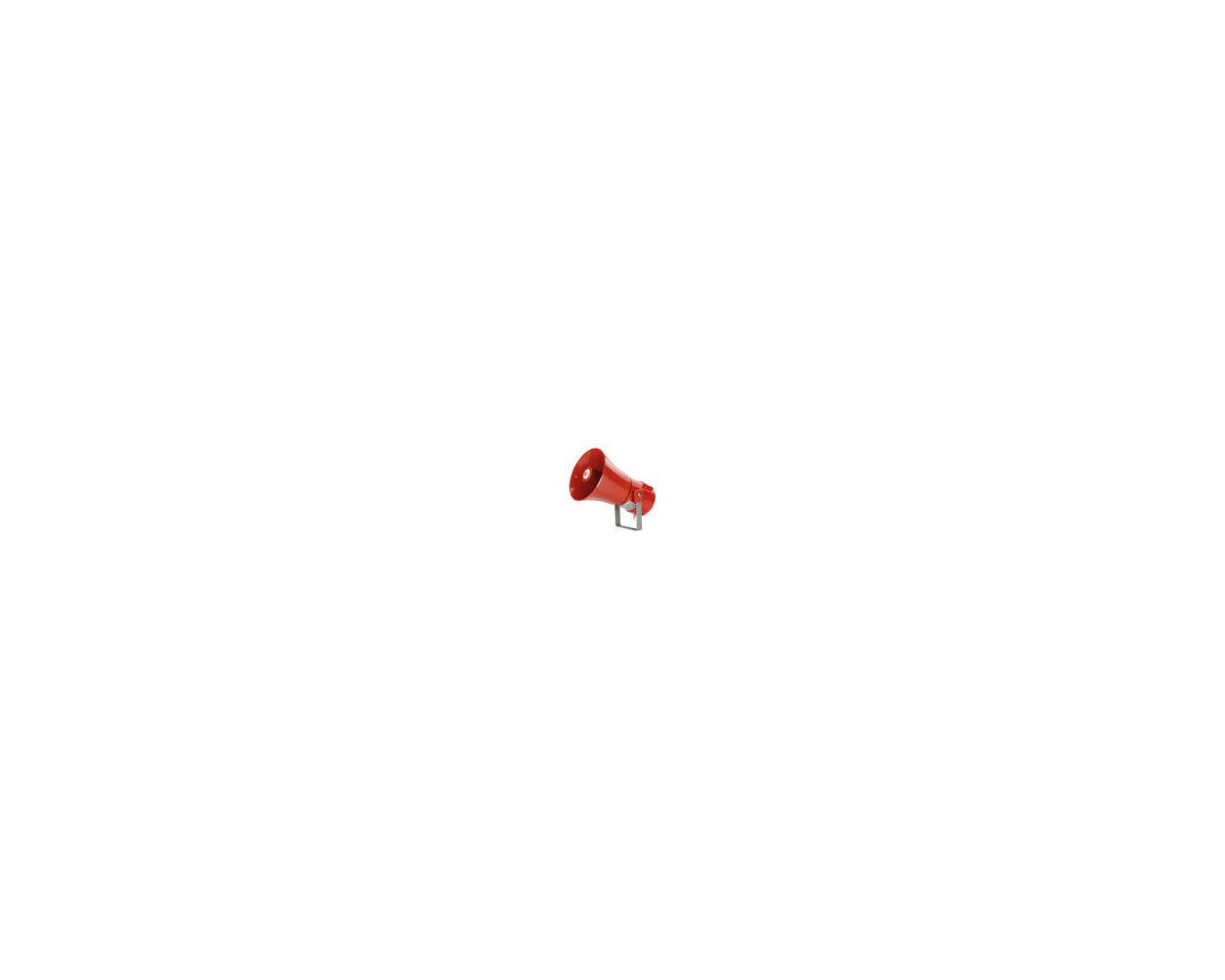

BExS110D-R 230V+/-10% 50/60Hz ac Alarm Sounders
*Price may change due to echange rate.
BExS110D-R 230V+/-10% 50/60Hz ac Alarm Sounders -Certificate:ATEX/IECEx, -Output:110dB, -No of tones:32, -No of stages: 3, -IP67, -Cable entries: Dual M20 ISO, SS316L Bracket
Leveranciersnummer: BExS110DRAC230AB2A1R
Bestelnummer: 26BExS110DRAC230AB2A1R
Specification
| Maximum output: | 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m] | |
| Nominal output: | 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m] | |
| No. of tones: | 32 (UKOOA / PFEER compliant) | |
| No. of stages: | 3 |Volume control: |
Max. 110dB(A); Min. 72dB(A) – Tone 2 |
| Effective range: | 100m/328ft @ 1KHz | |
| Voltages DC: | 12vdc; 24vdc; 48vdc | |
| Voltages AC: | 115vac; 230vac |
Stage switching:|Negative or positive|
|Ingress protection:|S110D : IP66/67 S110E : IP66|
|Enclosure matl:|Marine grade copper free LM6
Aluminium|
|Enclosure finish:|Chromate & powder coated finish – anti-corrosion.|
|Colour:|RAL3000 Red
(others available on request)|
|BExS110 flare:|High impact UL94 V0
& 5VA FR ABS (Red)|
|BExDS110 flare:|Anti-Static High impact ABS (Black)|
|Cable entries:|Dual M20 ISO (one stopping plug inc)|
|Terminals:|0.5 – 2.5mm² (20-14 AWG)|
|Enclosure volume:|<2 litres|
|Line monitoring:|Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted|
|Weight:|DC: 3.00kg/6.6Ibs AC: 3.20kg/7.04Ibs|
Downloads
1-22-050-bexs120-f_datasheet 4.pdf
