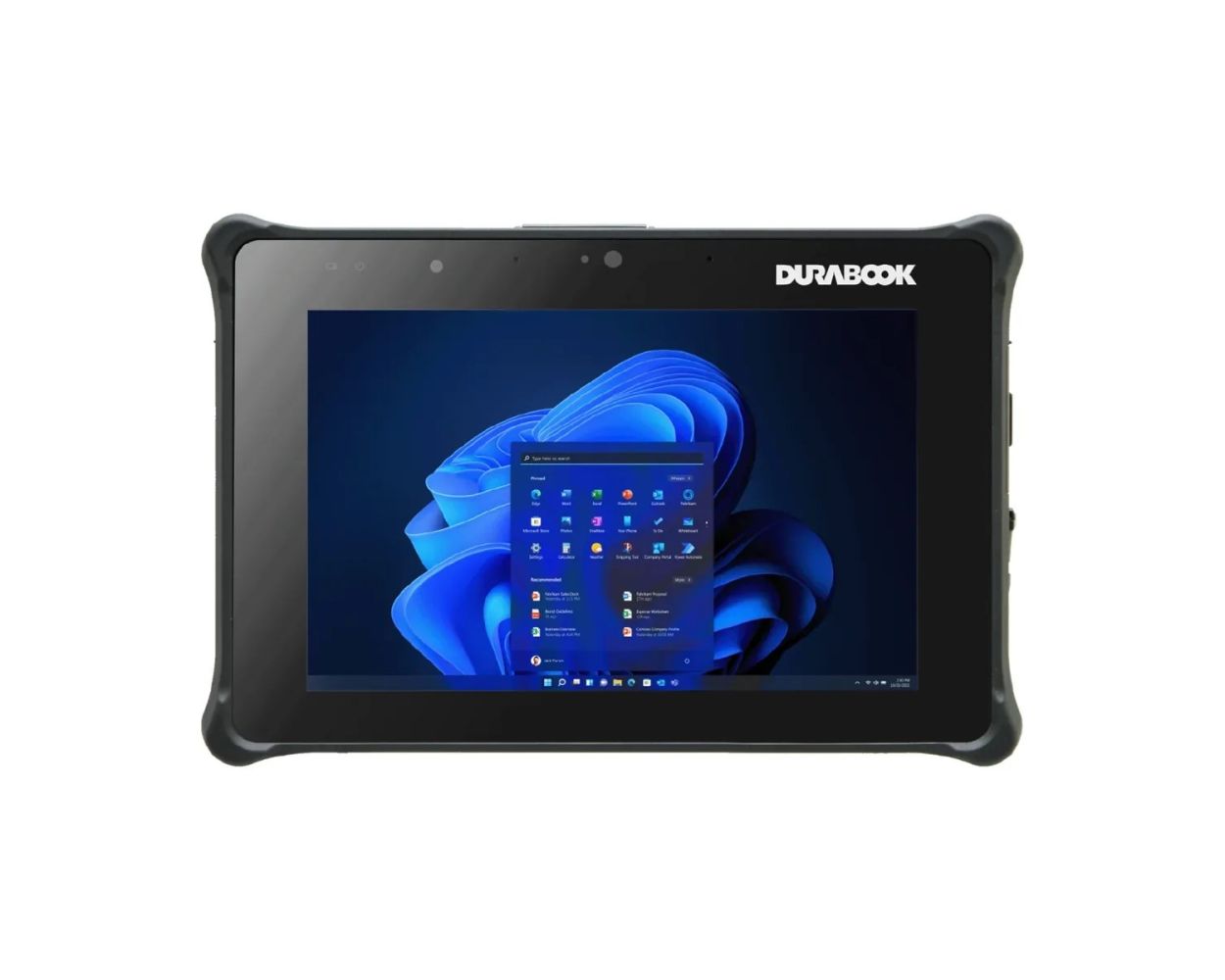

Durabook R8-EX ATEX Zone 2/22 Windows Tablet, 8 inch
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Durabook R8-EX 8 inch fully rugged Windows 11 Pro tablet for ATEX Zone 2 and Zone 22 (II 3G Ex ic IIC T4 Gc, II 3D Ex ic IIIB T135°C Dc), certified under ATEX only (no IECEx). 800 nits display, Wi-Fi 6E, IP66, MIL-STD-810H, 0.88 kg. EUR 2,066 excl. VAT with Intel Pentium Gold 8500, 8 GB and 128 GB SSD (R8H501DA_AXE); EUR 2,541 excl. VAT with Intel Core i5-1230U vPro, 8 GB, 128 GB SSD and swappable battery (R8H1P1DA_BXE).
Durabook R8-EX ATEX Zone 2/22 Windows Tablet, 8 inch
Certifications: ATEX (TPS 23 ATEX 123637 0002 X) • no IECEx | Zones: Zone 2 (gas) • Zone 22 (dust) | Protection: Ex ic | Rugged: IP66 (manufacturer rating) • MIL-STD-810H | Manufacturer: Durabook
The Durabook R8-EX is an 8 inch fully rugged Windows 11 Pro tablet certified under ATEX for Zone 2 and Zone 22. For buyers looking for an intrinsically safe or explosion proof Windows tablet: the protection concept on the certificate is intrinsic safety Ex ic, with the marking II 3G Ex ic IIC T4 Gc for gas and II 3D Ex ic IIIB T135°C Dc for dust (TÜV SÜD Type Examination Certificate TPS 23 ATEX 123637 0002 X Rev. 01). The R8-EX is certified under ATEX only; it has no IECEx certificate.
The tablet has an 8 inch 800 nits display, Intel Wi-Fi 6E and Bluetooth 5.3, IP66 and MIL-STD-810H, and weighs 0.88 kg. The base configuration with an Intel Pentium Gold 8500, 8 GB memory and a 128 GB SSD is EUR 2,066 excl. VAT. In the hazardous area the tablet must be used in the leather bag supplied by the manufacturer; see the specific conditions of use below.
Configurations and prices
Both configurations have Windows 11 Pro 64-bit, an 8 inch 1280 x 800 display with 800 nits, Intel Wi-Fi 6E AX211 and Bluetooth 5.3.
| Configuration | Order code | Price excl. VAT |
|---|---|---|
| Intel Pentium Gold 8500, 8 GB, 128 GB SSD, standard battery | R8H501DA_AXE | EUR 2,066 |
| Intel Core i5-1230U vPro, 8 GB, 128 GB SSD, swappable battery | R8H1P1DA_BXE | EUR 2,541 |
Mention the order code of the configuration you need in your order or quote request.
Other combinations from the Durabook datasheet, such as the Intel Core i7-1250U vPro, 16 GB memory, a 256 GB, 512 GB or 1 TB SSD, the long-life battery, GPS, 4G LTE, a barcode reader or a digitizer, can be quoted on request.
Why choose the Durabook R8-EX?
ATEX Zone 2 and Zone 22
Marked II 3G Ex ic IIC T4 Gc and II 3D Ex ic IIIB T135°C Dc. Type Examination Certificate TPS 23 ATEX 123637 0002 X Rev. 01, issued by TÜV SÜD Product Service GmbH on 22 May 2024. Certified ambient temperature -10°C to +60°C.
Windows 11 Pro on Intel
Intel Pentium Gold 8500, Core i5-1230U vPro or Core i7-1250U vPro with Intel UHD Graphics. Onboard 8 GB LPDDR4x (up to 16 GB) and a 128 GB NVMe PCIe SSD (optional 256 GB, 512 GB or 1 TB).
8 inch display, 800 nits
8.0 inch LCD (1280 x 800) with DynaVue sunlight readable technology and 10-point capacitive multi-touch. User selectable touch mode for finger/water, glove or stylus. Optional digitizer.
IP66 and MIL-STD-810H
IP66 certified, MIL-STD-810H certified and drop tested from 6 ft on 26 faces. Magnesium alloy chassis, port covers and a fanless Coolfinity thermal design.
Battery options
Main battery 7.6 V, 3600 mAh, 8.5 hours; optional long-life battery 7.6 V, 7200 mAh, 17 hours (MobileMark 2014, results vary). Optional swappable battery with 5 minutes swap time. Do not replace or charge the battery when an explosive atmosphere is present.
Compact 8 inch format
227 x 150 x 20.5 mm and 0.88 kg. Intel Wi-Fi 6E AX211 and Bluetooth 5.3 as standard, with optional dedicated GPS or GPS and 4G LTE multi-carrier mobile broadband.
Hazardous area certification
| ATEX marking | II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIB T135°C Dc |
| ATEX certificate | Type Examination Certificate TPS 23 ATEX 123637 0002 X Rev. 01, dated 22 May 2024 (first issue Rev. 00: 18 January 2024), Directive 2014/34/EU. Certification body: TÜV SÜD Product Service GmbH, München, Germany. |
| Certified equipment | Fully-Rugged Tablet PC Model: R8. Manufacturer named on the certificate: Twinhead International Corp., Taipei, Taiwan. |
| IECEx | None. Durabook lists ATEX only, and no IECEx certificate for this model was found in the IECEx online certificate system (checked October 2026). |
| Protection concept | Intrinsic safety "ic" |
| Standards | EN IEC 60079-0:2018, EN 60079-11:2012 |
| Zones | Zone 2 (gas, group IIC, temperature class T4) and Zone 22 (dust, group IIIB, max. surface temperature 135°C) |
| Ambient temperature (Ex) | -10°C to +60°C. Rev. 01 of the certificate changed the range from 0°C to +40°C to -10°C to +60°C. |
| Degree of protection (certificate) | IP20 by enclosure, tested according to EN 60529. Separately, Durabook states IP66 for the tablet's ruggedness. |
| Electrical data (certificate) | Battery powered, 7.6 V, battery type R8-H (7200 mAh) or R8-M (3600 mAh) |
| Other approvals | IP66, MIL-STD-810H. Durabook lists no NEC/CEC (North America) or UKEx approval for this model. |
Durabook products are made by Twinhead International Corp., the manufacturer named on the certificate (durabook.com is published under Twinhead's copyright).
The R8-EX is equipment category 3 (EPL Gc and Dc). It is not intended for Zone 1, Zone 21, Zone 0, Zone 20, for conductive dust (group IIIC) or for mining (group I).
Specific conditions of use (X)
- The tablet must be used with the leather bag supplied by Twinhead, fitted as described in the user manual.
- The tablet must not be connected to any external device.
- Charge the battery only in a safe area, with the Twinhead power adapter FSP065-RBBN3 (19 V, 3.42 A, 65 W).
Warning labels on the tablet according to the certificate:
- Use only Japone Technology Inc. R8-H (7200 mAh) or R8-M (3600 mAh) batteries.
- Do not replace or charge the battery when an explosive atmosphere is present.
- Do not open when an explosive atmosphere is present.
The manufacturer's instructions manual is part of the certification. Durabook's accessory list includes the "ATEX Protection Case R8-EX"; the datasheet does not state whether the case is supplied with the tablet as standard, so check this in your quote. The accessory list also includes a USB-C AC adapter, which is not the adapter model named on the certificate.
Technical specifications
Platform and display
| Operating system | Windows 11 Pro 64-bit |
| Processor | Intel Pentium Gold 8500 (8 MB cache, up to 4.4 GHz, 1P+4E cores) Intel Core i5-1230U (12th Gen) with vPro (12 MB cache, up to 4.4 GHz, 2P+8E cores) Intel Core i7-1250U (12th Gen) with vPro (12 MB cache, up to 4.7 GHz, 2P+8E cores) |
| Graphics | Intel UHD Graphics |
| Memory | Onboard 8 GB, up to 16 GB (LPDDR4x) |
| Storage | 128 GB NVMe PCIe SSD, optional 256 GB, 512 GB or 1 TB PCIe SSD |
| Display | 8.0 inch LCD (1280 x 800), 800 nits DynaVue sunlight readable display |
| Touchscreen | Capacitive multi-touch, user selectable touch mode for finger/water, glove or stylus; optional digitizer |
| Buttons | 4 buttons (1 user-definable key) |
| Cameras | Integrated 2.0 MP front-facing camera; optional 11 MP auto-focus rear camera with flash |
| Audio | Integrated microphone, integrated speaker, Intel High Definition Audio compliant |
| Security | Intel vPro Technology (per CPU option), TPM 2.0, NIST BIOS compliant, stealth mode, night vision mode |
Connectivity and interfaces
| Wireless | Intel Wi-Fi 6E AX211 (802.11ax), Bluetooth 5.3 |
| GPS and mobile network (optional) | Dedicated GPS module, or GPS and 4G LTE multi-carrier mobile broadband (the two options are mutually exclusive) |
| Ports | 1x Thunderbolt 4, 1x USB 3.2 Gen 2 Type-C (supports DisplayPort), 1x audio in/out combo jack, 1x microSDXC card slot, 1x 20-pin pogo docking connector, 1x nano-SIM slot, 1x DC-in jack. The ATEX certificate does not allow the tablet to be connected to any external device. |
| Options (mutually exclusive) | 1x USB 3.2 Gen 1 Type-A or 1D/2D barcode reader |
Power, physical and environmental
| Main battery | Li-ion, 7.6 V, 3600 mAh, 8.5 hours (MobileMark 2014; results vary with configuration, software, operating conditions and power settings) |
| Optional batteries | Long-life battery Li-ion, 7.6 V, 7200 mAh, 17 hours. Swappable battery with 5 minutes swap time (the system stays on in standby mode for up to 300 seconds during the swap); swap only when no explosive atmosphere is present. |
| AC adapter | 100-240 V, 50-60 Hz, 65 W. For charging, the certificate names adapter FSP065-RBBN3 (19 V, 3.42 A, 65 W), in a safe area only. |
| Dimensions (L x W x H) | 227 x 150 x 20.5 mm |
| Weight | 0.88 kg |
| Degree of protection | IP66 (manufacturer). The ATEX certificate lists IP20 by enclosure. |
| Ruggedness | MIL-STD-810H certified (drop, shock, vibration, rain, dust, altitude, freeze/thaw, high/low temperature, temperature shock, humidity, explosive atmosphere, salt fog); 6 ft drop on 26 faces; magnesium alloy chassis; port covers |
| Operating temperature | -20°C to +60°C (datasheet). In hazardous areas the certified ambient range of -10°C to +60°C applies. |
| Storage temperature | -46°C to +71°C |
| Humidity | 5% to 95% |
| Warranty | Durabook standard: 3-year limited warranty |
Accessories
| Accessories listed by Durabook | 65W AC adapter with power cord, ATEX Protection Case R8-EX, battery charger 2 bays, battery charger 8 bays, hand strap R8, screen protector film R8-EX, shoulder strap (2 point), shoulder strap (4 point) R8, spare digitizer pen, spare hi-cap battery R8, spare main battery R8, spare stylus and tether for capacitive touch, tablet stand, USB-C AC adapter with power cord |
Applications
The ATEX certificate describes the R8 as a ruggedised tablet for mobile computing in industrial environments, suitable for Zone 2 (gas group IIC) and Zone 22 (dust group IIIB). Typical tasks in these areas include:
- Digital and remote operations in hazardous areas
- Remote support, capturing and accessing information in the field, and running diagnostics
- Photo documentation with the optional 11 MP auto-focus rear camera
- Scanning 1D/2D barcodes with the optional barcode reader
- Mobile work in industrial plants with Zone 2 or Zone 22 areas
Documentation
- Durabook R8-EX product page
- Durabook R8-EX datasheet (PDF, Sep. 2025)
- ATEX certificate TPS 23 ATEX 123637 0002 X Rev. 01: copy on request
- IECEx certificate: none for this model
