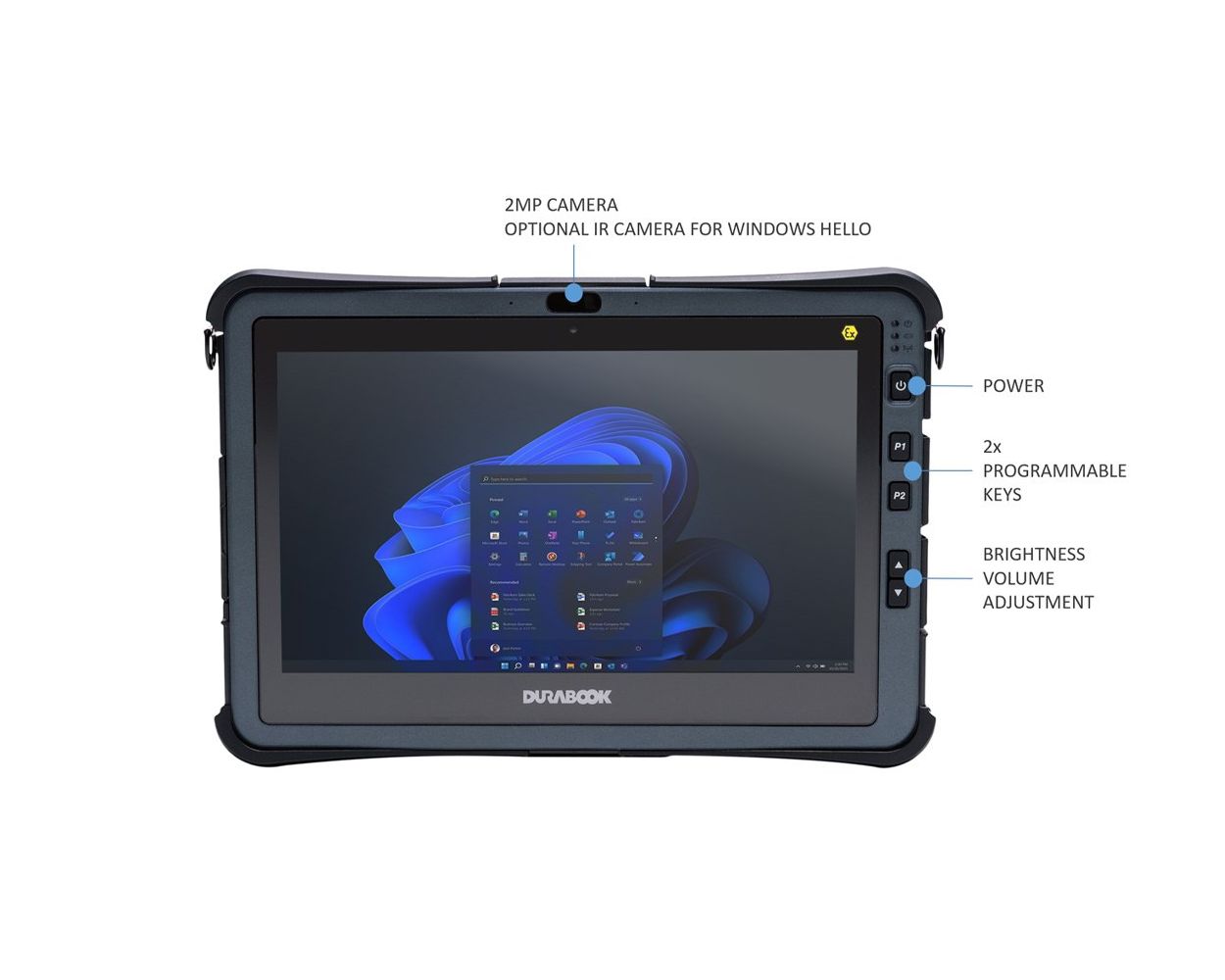

Durabook U11I-EX ATEX Zone 2/22 Windows Tablet, 11.6 inch
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Fully rugged 11.6 inch Windows 11 Pro tablet certified under ATEX for Zone 2 and Zone 22 (II 3G Ex ic IIC T4 Gc, II 3D Ex ic IIIB T135°C Dc, TPS 23 ATEX 123637 0001 X), ATEX only, no IECEx. Intel Core i5-1230U vPro, 8 GB, 256 GB SSD, 11.6 inch FHD display with 1,000 nits, Wi-Fi 6E, IP66 and MIL-STD-810H. EUR 2,908 excl. VAT, order code U1H1P2DA_AXE.
Durabook U11I-EX ATEX Zone 2/22 Windows Tablet, 11.6 inch
Certification: ATEX (TPS 23 ATEX 123637 0001 X) • no IECEx | Zones: Zone 2 (gas) • Zone 22 (dust) | Protection: Ex ic • IP66 (Durabook datasheet; IP20 on the ATEX certificate) • MIL-STD-810H | Operating system: Windows 11 Pro | Manufacturer: Durabook
The Durabook U11I-EX is an 11.6 inch fully rugged Windows 11 tablet for hazardous areas classified as Zone 2 (gas) and Zone 22 (dust). For buyers looking for an intrinsically safe or explosion proof Windows tablet: the protection concept on the ATEX certificate is intrinsic safety, level ic, with the marking II 3G Ex ic IIC T4 Gc for gas and II 3D Ex ic IIIB T135°C Dc for dust. The approval is ATEX only (Type Examination Certificate TPS 23 ATEX 123637 0001 X Rev. 01, TÜV SÜD Product Service GmbH). There is no IECEx certificate for this tablet.
The tablet runs Windows 11 Pro 64-bit on a 12th Gen Intel Core processor with vPro, has a fanless thermal design and is rated IP66 and MIL-STD-810H by Durabook. ATEXshop supplies the configuration with an Intel Core i5-1230U vPro, 8 GB memory, a 256 GB SSD, an 11.6 inch FHD display with 1,000 nits, Wi-Fi 6E and Bluetooth 5.3 for EUR 2,908 excl. VAT.
Order code: U1H1P2DA_AXE (Core i5-1230U vPro, 8 GB, 256 GB SSD, 11.6 inch FHD 1,000 nits, Wi-Fi 6E + Bluetooth 5.3) | Price: EUR 2,908 excl. VAT
Mention the order code in your order or quote request. Durabook also lists the Core i7-1250U vPro, up to 32 GB memory, SSDs up to 2 TB and options such as GPS, 4G LTE, 5G, a 1D/2D barcode reader and a smart card reader; ask us for a quote for these configurations.
Why choose the Durabook U11I-EX?
ATEX Zone 2 and Zone 22
Marked II 3G Ex ic IIC T4 Gc and II 3D Ex ic IIIB T135°C Dc. Type Examination Certificate TPS 23 ATEX 123637 0001 X Rev. 01, issued by TÜV SÜD Product Service GmbH on 22.05.2024. ATEX only, no IECEx.
Windows 11 Pro on Intel Core vPro
Intel Core i5-1230U (12th Gen) with vPro, 12 MB cache, up to 4.4 GHz, 2P+8E cores, with Intel Iris Xe Graphics. 8 GB LPDDR4x onboard and a 256 GB NVMe PCIe SSD in the listed configuration.
11.6 inch FHD display, 1,000 nits
1920 x 1080 DynaVue sunlight readable display with a 10-point capacitive multi-touch panel. The user selects the touch mode for finger/water, glove or stylus. A digitiser is available as an option.
IP66 and MIL-STD-810H
Durabook states IP66, MIL-STD-810H and a 6 ft drop on 26 faces. Magnesium alloy chassis, port covers and a fanless thermal design (Coolfinity).
Interfaces
Thunderbolt 4, USB 3.2 Gen1 type A, Gigabit Ethernet (RJ45), microSD, audio combo jack and a 20-pin docking connector. One optional port or module: USB-C, a second USB-A, USB 2.0, an RS232/422/485 serial port or a 1D/2D barcode reader. External devices may only be connected or disconnected outside the explosive atmosphere.
Battery options
Main battery 7.6 V, 4800 mAh, rated by Durabook at 10 hours (MobileMark 2014). Optional hi-cap battery 7.6 V, 9600 mAh, rated at 20 hours. Batteries may only be replaced or charged outside the explosive atmosphere.
Hazardous area certification
| ATEX marking | II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIB T135°C Dc |
| ATEX certificate | Type Examination Certificate TPS 23 ATEX 123637 0001 X Rev. 01, dated 22.05.2024 (first issue Rev. 00: 28.12.2023). Certification body: TÜV SÜD Product Service GmbH, Munich. Directive 2014/34/EU. |
| Certified equipment | Fully-Rugged Tablet PC, models U11 and U11I. Manufacturer on the certificate: Twinhead International Corp., Taipei, Taiwan. According to the certificate the U11 and U11I are identical; the difference depends on the sales area. |
| IECEx certificate | None. The U11I-EX is approved under ATEX only. |
| Protection concept | Intrinsic safety "ic" |
| Standards | EN IEC 60079-0:2018, EN 60079-11:2012 |
| Zones | Zone 2 (gas, group IIC, temperature class T4) and Zone 22 (dust, group IIIB, max. surface temperature 135°C) |
| Ambient temperature (Ex) | -10°C ≤ Ta ≤ +60°C (changed from 0°C to +40°C in Rev. 01). The datasheet operating range of -20°C to +60°C does not apply in the hazardous area. |
| Degree of protection on the certificate | IP20 (tested according to EN 60529). Durabook states IP66 for the tablet in its datasheet. |
| Electrical data (certificate) | Battery power 7.6 V, battery type X11BA-H (9600 mAh) or X11BA-M (4800 mAh) |
| Other approvals | Durabook lists no NEC/CEC (North America) or UKEx approval for this model. |
The U11I-EX is equipment category 3 (EPL Gc and Dc). It is not intended for Zone 0, Zone 1, Zone 20, Zone 21 or for mining (group I). For dust it is certified for group IIIB (non-conductive dust), not for conductive dust (group IIIC).
Specific conditions of use (X)
- Use the tablet packed in the leather bag provided by Twinhead. The bag must not be removed in the hazardous area.
- Do not connect the tablet to, or disconnect it from, any external devices or interfaces in an explosive atmosphere.
- Use only the power adaptor provided by Twinhead, model FSP065-RBBN3 (19 V, 3.42 A, 65 W).
The warning label in the certificate adds:
- Use only Japone Technology Inc. X11BA-H (9600 mAh) or X11BA-M (4800 mAh) batteries.
- Do not replace or charge the battery when an explosive atmosphere is present.
- Do not open when an explosive atmosphere is present.
The certificate refers to the manufacturer's ATEX user manual for installation and use. Durabook lists an ATEX Protection Case among the U11I-EX accessories and does not publish the box contents, so check in your quote or order that the leather bag required by the certificate is included. Durabook also lists a USB-C AC adapter as an accessory; the certificate only permits the FSP065-RBBN3 adaptor. The datasheet mentions a hot-swappable battery and an optional bridge battery; under the certificate, batteries may only be replaced outside the explosive atmosphere.
Technical specifications
Performance and display
| Operating system | Windows 11 Pro 64-bit |
| Processor | Intel Core i5-1230U (12th Gen) with vPro, 12 MB cache, up to 4.4 GHz, 2P+8E cores (listed configuration) Option: Intel Core i7-1250U (12th Gen) with vPro, 12 MB cache, up to 4.7 GHz, 2P+8E cores |
| Graphics | Intel Iris Xe Graphics |
| Memory | 8 GB LPDDR4x onboard (listed configuration), up to 32 GB |
| Storage | 256 GB NVMe PCIe SSD (listed configuration); optional 512 GB, 1 TB or 2 TB PCIe SSD |
| Display | 11.6 inch FHD (1920 x 1080), 1,000 nits DynaVue sunlight readable display with capacitive multi-touch (listed configuration); optional digitiser |
| Touch | 10-point capacitive multi-touch, user selectable touch mode for finger/water, glove or stylus |
| Cameras | Integrated 2.0 MP front camera; optional 11 MP auto-focus rear camera with flash; optional 5.0 MP IR camera for Windows Hello |
| Audio | Integrated microphone, 2 integrated speakers, Intel High Definition Audio compliant |
| Keys | 5 buttons (2 user-definable keys) |
Connectivity and interfaces
| Wireless | Intel Wi-Fi 6E AX211 (802.11ax), Bluetooth 5.3 |
| Wireless options | Dedicated GPS module (u-blox NEO-M9N), 4G LTE multi-carrier mobile broadband, 5G (project based). Dedicated GPS and 4G LTE/5G are mutually exclusive options. |
| Wired network | 10/100/1000 Ethernet (RJ45) |
| I/O ports | Thunderbolt 4 x 1, USB 3.2 Gen1 (type A) x 1, audio in/out combo jack x 1, microSD (microSDHC, microSDXC) x 1, Ethernet (RJ45) x 1, docking connector (20-pin pogo) x 1, nano SIM x 1, DC-in jack x 1 |
| Optional I/O | Smart card reader x 1. One of: USB 3.2 Gen2 (type C), 2nd USB 3.2 Gen1 (type A), USB 2.0 (type A), serial port (RS232, 422 and 485, D-sub 9-pin) or 1D/2D barcode reader. USB-C and USB 2.0 are project-based features. |
| Security | Intel vPro, Secured-core PC (availability on request), TPM 2.0, NIST BIOS compliant, stealth mode, Kensington lock; optional smart card reader, Windows Hello, night vision mode (with the sunlight readable display) and fingerprint scanner |
Power, physical and environmental
| Main battery | Li-Ion, 7.6 V, 4800 mAh, 10 hours (MobileMark 2014, results vary with configuration and use) |
| Battery options | Hi-cap battery Li-Ion, 7.6 V, 9600 mAh, 20 hours (MobileMark 2014); bridge battery with 5 minutes swap time (swap outside the explosive atmosphere only) |
| AC adapter | 100-240 V, 50-60 Hz, 65 W. The ATEX certificate permits only adaptor FSP065-RBBN3 (19 V, 3.42 A, 65 W). |
| Dimensions (L x W x H) | 317 x 215 x 23.8 mm |
| Weight | 1.49 kg |
| Degree of protection | IP66 (Durabook datasheet); IP20 stated on the ATEX certificate |
| Ruggedness | MIL-STD-810H (drop, shock, vibration, rain, dust, altitude, freeze/thaw, high/low temperature, temperature shock, humidity, explosive atmosphere, salt fog); 6 ft drop on 26 faces; magnesium alloy chassis; port covers. These are ruggedness tests; use in hazardous areas is covered by the ATEX certificate. |
| Operating temperature | -20°C to +60°C (datasheet); -10°C to +60°C in the hazardous area (ATEX certificate) |
| Storage temperature | -51°C to +71°C |
| Humidity | 5% to 95% |
| Warranty | Durabook standard: 3-year limited warranty |
| Accessories (Durabook) | 65W AC adapter with power cord, ATEX Protection Case, battery charger (2 bays and 8 bays), hand strap, screen protector film U11I-EX, shoulder strap (2-point and 4-point), spare digitizer pen, spare hi-cap battery, spare main battery, spare stylus and tether for capacitive touch, tablet stand, USB-C AC adapter with power cord |
Applications
Durabook describes the U11I-EX for use in potentially explosive atmospheres of Zone 2 and Zone 22, for example to provide remote support, capture and access information in the field and run diagnostics. Typical tasks in these areas include:
- Inspection and maintenance rounds with digital checklists and work orders in Windows applications
- Remote support and diagnostics in the field
- Photo documentation with the optional 11 MP auto-focus rear camera
- Scanning 1D/2D barcodes with the optional integrated barcode reader
- Field work at, for example, oil and gas, utility and manufacturing sites with Zone 2 areas, or Zone 22 areas with non-conductive dust (group IIIB)
Documentation
- Durabook U11I-EX datasheet, Sep. 2025 V4 (PDF)
- Durabook U11I-EX product page
- ATEX Type Examination Certificate TPS 23 ATEX 123637 0001 X Rev. 01: copy available on request
- IECEx: not applicable, there is no IECEx certificate for this tablet
