EX-2980 - Intrinsically Safe Head Light - Atex Zone 0

Call for Price
*Price may change due to echange rate.
SKU
42326383
SAP Item ID
42326383

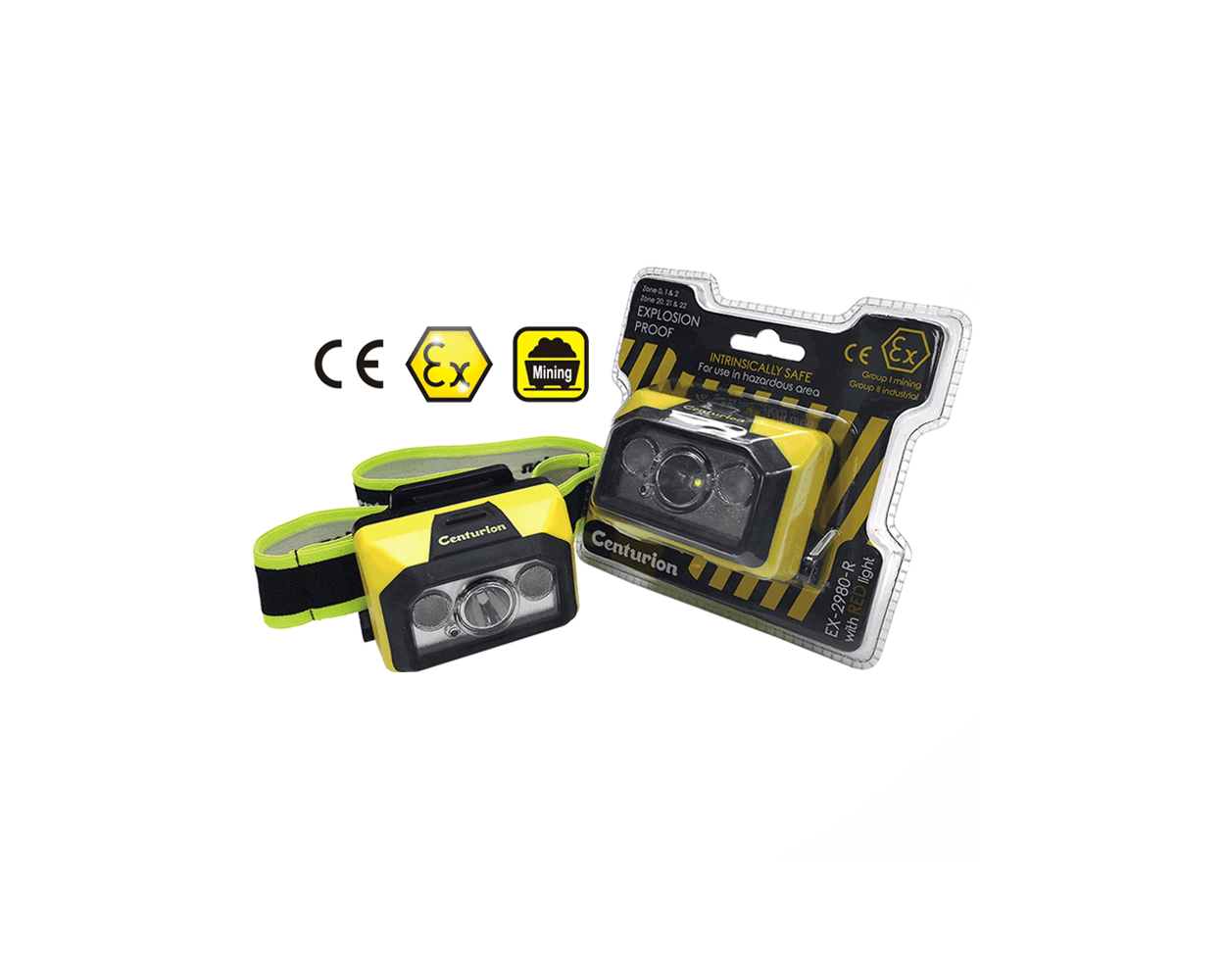

This EX-2980 Intrinsically Safe Headlamp is ATEX Directive certified for safe use in hazardous locations in zones 0, 1, 2, and zones 20, 21, 22, and are approved safety standards for use in the Mining Industry. IP66 waterproof and dustproof.

EX-2980 - Intrinsically Safe Head Light - Atex Zone 0

Technical Detail:

This EX-2980 Intrinsically Safe Headlamp is ATEX Directive certified for safe use in hazardous locations in zones 0, 1, 2, and zones 20, 21, 22, and are approved safety standards for use in the Mining Industry. IP66 waterproof and dustproof.



Designed for single-handed switching, hands-free illumination in every situation, a unique non-slip elastic strap included for the head or attached to hard-hats or fire helmets. The tilt-adjustment mechanism of the headlight allows adjusting the light angle, rotatable head (maximum adjustable angle of 72 degrees), to meet the visual needs. Customized optics provide a wide spot beam for hands-free tasks and is powered by 3 AAA alkaline batteries.



Ex Mark:
I M1 Ex ia I Ma IP67
II 1G Ex ia op is IIC T4 Ga
II 1D Ex ia IIIC T130°C Da



- Type of Protection: 'ia' Intrinsically Safe

- Areas of Classification (Gases): Zone 0, 1, and 2, Gas Groups: IIA, IIB, and IIC

- Areas of Classification (Dusts): Zone 20, 21, and 22, Dust Groups: IIIA, IIIB, and IIIC

- Temp. Classification (Gases): T4

- Temp. Classification (Dusts): 130°C

- Ambient Temperature: -20°C~+40°C

- Beam Type: Spot / Flood

- Beam Distance: 58 Meters

- Output mode: High / Low / Flood / Strobe Light

- Output: 130 Lumens (High) /40 Lumens (Low) / 82 Lumens (Flood) /

                130 Lumens (Strobe light) **All of them are effective lumens

- Light Duration: 5.3 Hours (High) / 16 Hours (Low) / 11.5 Hours (Flood) / 7.5 Hours (Strobe Light)

- Light Source Type: High power LED bulb

- Power: 4.5V 1.8W

- Power Source: 3 X LR03(AAA) Alkaline batteries

- Ingress Protection: IP67

- Impact Resistant: 2 Meters

- Production Weight: 116g (without batteries)

- Dimension: 87*61*49mm

- Packing: 100 pieces per carton, size: 62*38*43cm



Operation:
This light had 4 output modes (High, Low, Flood Mode, and Strobe Light), when the light is OFF, push the top button to operate :



- First click turns on the light to “High”.

- Second click turns on the light to “Low”.

- Third click turns on the light to “Flood Mode”.

- Press-and-hold for few seconds to turn on the light to “Strobe Light”.
