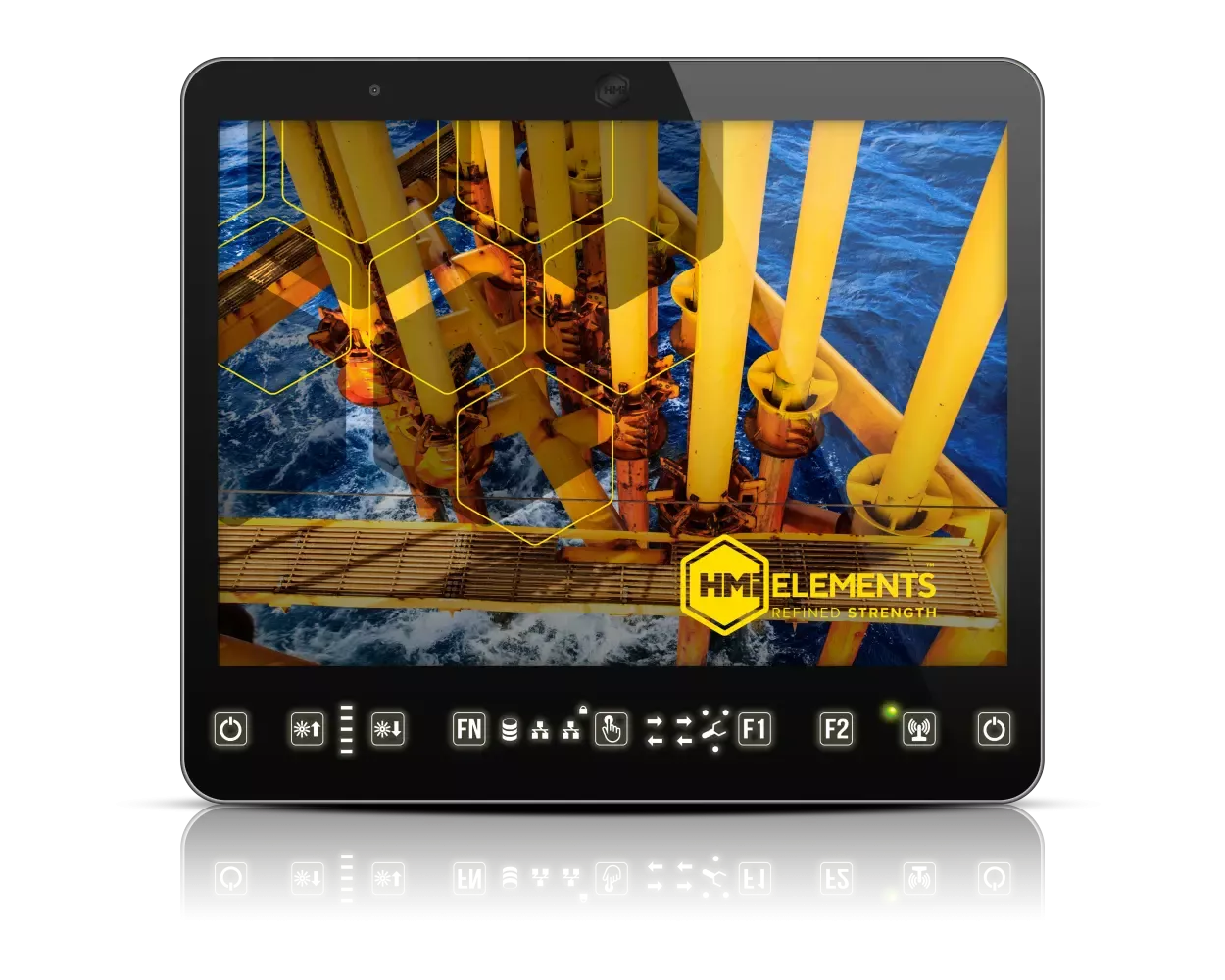

The HMI Elements 1301-Z1 is the latest addition to HMI Elements' range of hazardous area HMIs - a slim and lightweight PC with a super high-bright 19", 1000 nit multi-touch glove-friendly touchscreen. As you would expect from HMI Elements, it comes certified for use in Class I Zone 1 areas with Ethernet and Wi-Fi as standard and a choice of operating voltages.

This revolutionary 19" Zone 1 HMI combines show-stopping design with rugged reliability, built to survive the harsh challenges of Zone 1 environments. Crafted from a single piece of aluminum and IP66-rated on all sides, the 1301-Z1 is a stand-alone PC ready for seamless integration into hazardous locations, delivering unmatched durability and reliable performance in the toughest conditions.

With its slim 5.7" profile weighing just 25.2kg (55.55lbs), this precision-engineered unit can be carried by just one person while delivering industrial-grade performance with Intel Core i7 processors that work 100% from -40°C to +60°C.

WHY YOU NEED THIS HMI

When your Zone 1 operations demand the largest display and premium performance, the 1301-Z1 delivers uncompromising results. Whether you're managing complex SCADA systems, monitoring critical processes in oil & gas facilities, petrochemical plants, or pharmaceutical manufacturing, you need an HMI that provides exceptional clarity and responsiveness while meeting the strictest safety standards.

The 19" ultra-bright 1000 nit display ensures perfect visibility even in direct sunlight - critical for outdoor installations and brightly lit industrial environments. This is the largest Zone 1 certified display available, providing maximum screen real estate for comprehensive process visualization without compromising safety certifications.

With built-in diagnostics, remote telemetry, clean screen mode, and field maintainability, the 1301-Z1 minimizes operational disruption while maximizing uptime. The precision machining from a single piece of aluminum represents craftsmanship at its finest, ensuring reliability in the harshest Zone 1 environments.

INDUSTRY-LEADING FEATURES

Certifications:

ATEX/UKEX: II2 GD Ex eb mb op is [Ib] IIC T4 Gb Ex tb IIC T90°C
IECEx: Ex eb mb op is [Ib] IIC T4 Gb Ex tb IIC T90°C
USA: Class 1, Zone 1, AEx eb db mb op is [ib] IIC T4 Gb Zone 21, AEx tb IIC T90°C Db
Canada: Ex db ib mb IIC T4 Gb Ex tb IIC T90°C Db

Performance:

Intel® Core i7 6th Gen Skylake 6600U OR Intel® Core i7 7th Gen Kabylake 7600U
Windows 10 Enterprise LTSB/LTSC Operating System
Memory options: 8GB, 16GB, or 32GB DDR4-2133MHz
Auto ranging power supply: 100-240VAC, 50-60 Hz, 1.3A

Display:

19" aspect ratio 5:4 - largest Zone 1 certified display available
Ultra-bright 1000 nit sunlight-readable with antiglare finish
SXGA resolution: 1280 x 1024, wide viewing angle, 24-bit color
IR hot mirror incorporated
Projective Capacitive Technology (PCT) - Multi-touch, glove-friendly
Tuned for water rejection and gloved hand operation

Connectivity:

Ethernet 10/100/1000 Mbit/s (standard)
Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz & 5GHz (standard)
Optional interfaces: USB, RS232, RS485, IS Horn, Fiber
Wireless options: Xbee 802.15.4, Microhard IPn920 - 900MHz, Bluetooth
Fiber (OP IS): 1310nm, 850nm

Construction:

Machined from single piece of aluminum - premium craftsmanship
Aluminum alloy, hard anodized, natural finish
Slim profile: just 145mm (5.7") depth
Lightweight: 25.2kg (55.55lbs) excluding connectors and accessories
IP66/NEMA 4X ingress protection
Operating temperature: -40°C to +60°C (-40°F to +140°F)

Installation:

Compact footprint: 429.5mm x 424.5mm x 145mm (W x H x D)
Versatile mounting: VESA, Yoke, Desk Stand, Panel mounting
Designed for field maintainability
Choice of operating voltages

Advanced Features:

Remote telemetry capabilities
Built-in diagnostics with LED front panel indicators
Clean screen mode for safe operation during cleaning
Front panel controls: Screen brightness, radio silence mode, touch screen disable mode, standby mode
Remote interrogation and on-board diagnostics
Wide operating temperature range as standard

Standards Compliance:

Shock: BS EN60068-2-27:2009
Vibration: BS EN60068-2-6:2008
Storage temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 10-90% non-condensing (operating)
