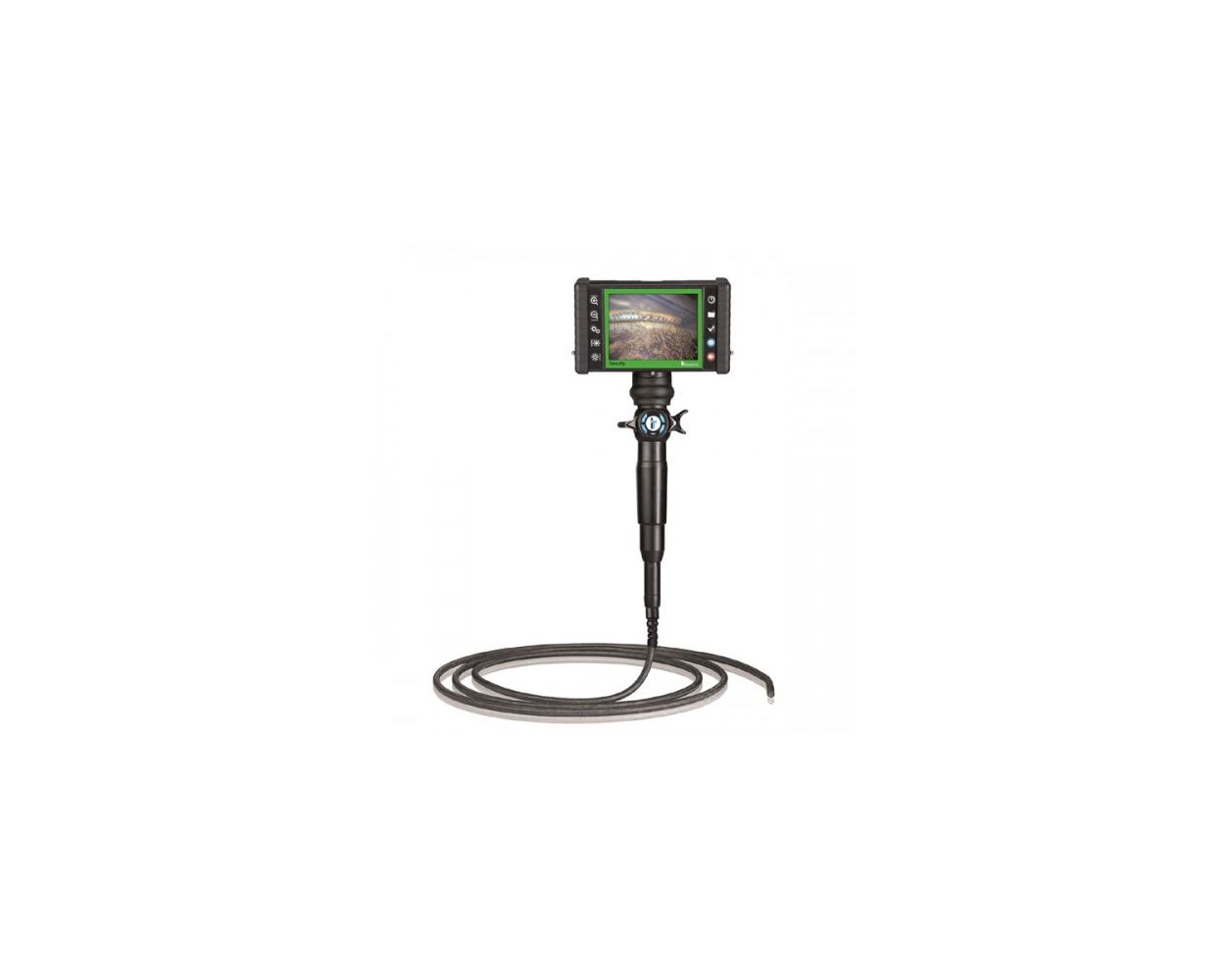

ATEX iRis XT Video endoscope System

Operating unit
Display size: 5.0“ (12.7cm) TFT colour
Display resolution: VGA (640x480 pixel)
Operating system: Real-time operating system, with on-screen menu
User interface: Direct action keys / function keys / arrow keys
Languages: English, German, Polish, French, Spanish, Italian, Turkish

Power supply, primary: Rechargeable Li-ion battery
(charger and battery are provided in delivery set)

Documentation
Video format: MPEG4 (.avi) (with time and date stamp)
Image format: BMP (.bmp) (with time and date stamp)
Storage: SDHC memory card up to 32GB
(FAT32) (8GB is provided in delivery set)

Camera control
Image sensor: Advanced chip on the tip image sensor
White balance: Factory default or user defined

Image control
Zoom: 16 step digital zoom
Brightness: Adjustable
Contrast: Adjustable
Colour: Adjustable
Text annotation: Built-in text overlay generator

Illumination
Type: High-power LED with high transmission fiber optics
Illumination control: 3 steps
Colour temperature: approx. 6500k
Average lamp lifetime: approx. 5000h

Probe
Diameter: 4.0mm 6.0mm 8.0mm
Working length: 1.5 - 4.0m 1.5 - 7.5m 1.5 - 7.5m
Articulation (bending neck): 4way 360° control 4way 360° control 4-way 360° control
Integrated objective lens: 120° FOV 90°FOV 90°FOV
Braid: Durable multi-layer tube with tungsten braid on PU jacket

Operating environment
Tip operating temperature: -25°C to +80°C
System operating temperature: -25°C to +46°C
Storage temperature: -25°C to +60°C
Relative humidity: 95% - non condensing
Waterproof: Probe and distal end up to 14.7 psi (1 bar- 10.2m H2O)
Resistance: Probe and distal end to oils and saline (5%)
Carrying Case 508mm x 373mm x 147mm / 4,5kg

Manufacturer‘s Data
Country of Origin Germany
