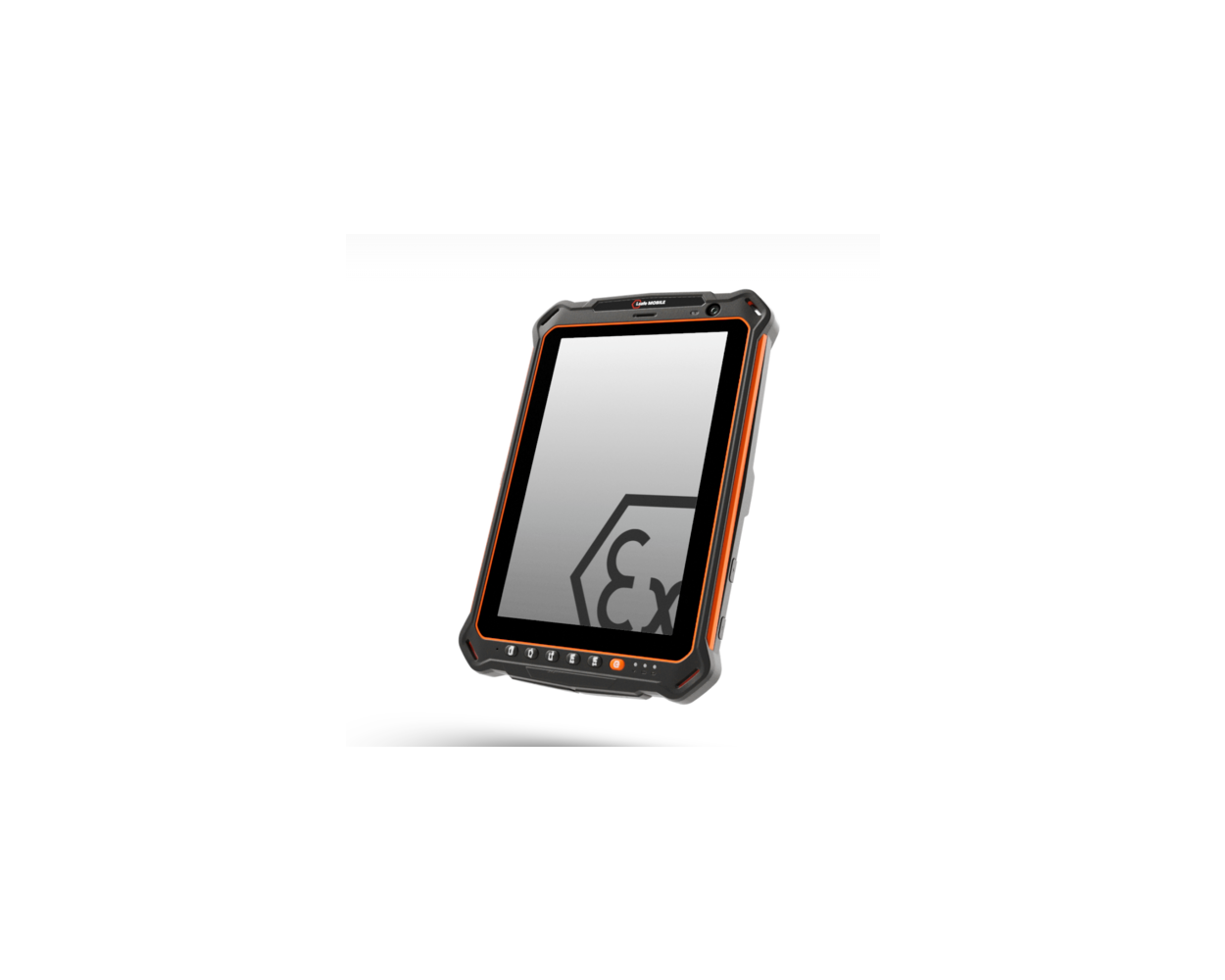

i.safe MOBILE IS930.M1 Mining Tablet, ATEX M1, Android, 8 inch
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Intrinsically safe 8 inch Android tablet for mines susceptible to firedamp (ATEX I M1 Ex ia I Ma IP64, IECEx Ex ia I Ma IP64). The current IECEx and ANZEx certificates also list Ex ib IIC T4 Gb (gas) and Ex ib IIIC T135°C Db IP6X (dust). Snapdragon SDM660, 4 GB RAM, 64 GB, 4G LTE, 13 MP camera, IP68 and an integrated 8160 mAh battery.
i.safe MOBILE IS930.M1 Mining Tablet, ATEX M1, Android, 8 inch
Certifications: ATEX (EPS 19 ATEX 1 128 X) • IECEx (IECEx EPS 19.0063X) • ANZEx (ANZEx 20.2001X) | Mining: Group I, category M1 (Ex ia I Ma IP64) | Gas and dust: Ex ib IIC T4 Gb • Ex ib IIIC T135°C Db IP6X (see certification) | Protection: intrinsic safety • IP68 • MIL-STD-810H | Manufacturer: i.safe MOBILE
The i.safe MOBILE IS930.M1 is an intrinsically safe 8 inch Android tablet designed for use in mines susceptible to firedamp. In the ATEX marking I M1 Ex ia I Ma IP64, equipment group I stands for equipment intended for mines susceptible to firedamp (methane), and category M1 means the equipment is designed with a very high level of protection so that it can remain in operation while an explosive atmosphere is present (equipment protection level Ma). The protection concept is intrinsic safety "i", protection level ia for mining.
The current IECEx certificate (IECEx EPS 19.0063X, issue 2) and the ANZEx certificate also list the gas marking Ex ib IIC T4 Gb and the dust marking Ex ib IIIC T135°C Db IP6X. The i.safe MOBILE EU Declaration of Conformity lists the matching ATEX markings II 2G Ex ib IIC T4 Gb and II 2D Ex ib IIIC T135°C Db IP6X. The i.safe MOBILE datasheet and product page list the mining approvals only. Details are in the certification section below.
The tablet has a Qualcomm Snapdragon SDM660 octa-core processor, 4 GB RAM, 64 GB storage with a microSD slot, an 8 inch display with 1200 x 1920 pixels, 4G LTE, Wi-Fi, NFC, a 13 MP rear camera and an integrated 8160 mAh battery.
Order code: 01-00930011-001-001 (IS930.M1 tablet set, EEA version: 4 GB RAM, 64 GB storage, 4G LTE, Android)
Price: EUR 2,556 excl. VAT
Why choose the i.safe MOBILE IS930.M1?
Mining category M1
ATEX I M1 Ex ia I Ma IP64 and IECEx Ex ia I Ma IP64 for mines susceptible to firedamp. ANZEx (Australia/New Zealand) approval Ex ia I Ma IP64, ambient temperature -20°C to +60°C.
8 inch display, usable with gloves
8.0 inch (20.32 cm) display with 1200 x 1920 pixels and Corning Gorilla Glass 3rd generation. The touchscreen can be operated with gloves.
4G LTE, Wi-Fi and NFC
2G, 3G and 4G LTE, dual-band Wi-Fi (2.4 GHz and 5 GHz) with hotspot for up to 8 connections, Bluetooth 5, NFC and GPS, A-GPS, Glonass, Beidou and Galileo positioning.
Integrated 8160 mAh battery
Fixed Li-Ion battery with 8160 mAh. Charging via USB-C, the magnetic charger port, the IS-DS930.1 docking station or the IS-MC930.1 multi charger, outside the hazardous area only.
SOS key and programmable keys
SOS key for lone worker protection (LWP ready; a third-party application is required, depending on country-specific regulations) and 2 freely programmable keys. Amplified loudspeaker.
Rugged housing
IP68 dust-proof and waterproof and MIL-STD-810H according to the datasheet. Usable from -20°C to +60°C. Size 237 x 156 x 22 mm, with a hand strap included.
Certification
| ATEX marking | I M1 Ex ia I Ma IP64 II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db IP6X (as listed in the i.safe MOBILE EU Declaration of Conformity of 2 September 2021, the safety instructions and the operating manual) |
| ATEX certificate | EU-Type Examination Certificate EPS 19 ATEX 1 128 X, issued by Bureau Veritas Consumer Products Services Germany GmbH (notified body 2004). The revision that i.safe MOBILE publishes for download is revision 1 of 12 August 2020, with the marking I M1 Ex ia I Ma IP64. ATEX documentation for the gas and dust marking on request. |
| IECEx marking | Ex ia I Ma IP64 Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X |
| IECEx certificate | IECEx EPS 19.0063X, issue 2, 7 June 2021, status Current. Certification body: Bureau Veritas Consumer Products Services Germany GmbH. Issue 2 added the gas and dust groups; issues 0 and 1 covered Ex ia I Ma IP64 only. |
| Protection concept | Intrinsic safety "i": level ia for mining (group I), level ib for gas (group IIC) and dust (group IIIC) |
| Equipment covered | IS930.M1 intrinsically safe industrial tablet, model M93A01 |
| Standards | ATEX: EN IEC 60079-0:2018, EN 60079-11:2012 IECEx: IEC 60079-0:2017 (Ed. 7.0), IEC 60079-11:2011 (Ed. 6.0) |
| Other approvals | ANZEx 20.2001X, issue 1, 9 July 2021 (Australia/New Zealand): Ex ia I Ma IP64, Ex ib IIC T4 Gb, Ex ib IIIC T135°C Db IP6X EAC (Russia), according to the datasheet: PB Ex ib I Mb X SANS (South Africa), according to the datasheet. The IA certificate MTEx-MS/20.0014 X (revision 1) published by i.safe MOBILE covered units imported between 10 February 2023 and 10 February 2026 and has expired. Ask us about the current South African certification status. |
| Ambient temperature | -20°C to +60°C (charging +5°C to +35°C, outside the hazardous area) |
Reading the marking
I M1, Ma: equipment group I (mines susceptible to firedamp), category M1, equipment protection level Ma
II 2G, Gb: equipment group II, category 2, explosive gas atmospheres; for Zone 1 and Zone 2
II 2D, Db: equipment group II, category 2, combustible dust; for Zone 21 and Zone 22
Ex ia / Ex ib: intrinsic safety "i", protection levels ia and ib
IIC T4: gas group IIC, temperature class T4 (maximum surface temperature 135°C)
IIIC T135°C: dust group IIIC (conductive dust), maximum surface temperature 135°C
IP64 / IP6X: degree of protection stated in the Ex marking; IP6X means dust-tight
The i.safe MOBILE datasheet and product page list the mining approvals only, and the ATEX certificate revision published by i.safe MOBILE shows the mining marking only. The gas and dust markings appear on the current IECEx and ANZEx certificates and in the i.safe MOBILE EU Declaration of Conformity, safety instructions and operating manual. Before using the tablet in Zone 1, 2, 21 or 22, check the marking on the device label and the certificate.
Specific conditions of use (X)
- Charge the battery only outside hazardous areas. Wired data connections are also only allowed outside hazardous areas.
- Do not open the interface covers in an explosive atmosphere.
- Protect the device from impacts with high impact energy, against permanent UV light emission and against high electrostatic charge processes.
- Protect the device from exposure to oil, greases and hydraulic fluids.
- Permitted ambient temperature -20°C to +60°C.
According to the certificate, the maximum voltage Um = 5.88 V is ensured by using the Docking Station DS930.1, the i.safe PROTECTOR cables or other accessories specified by i.safe MOBILE. In the hazardous area, the microSD cards IS-SD164.1 and IS-SD1128.1 may be used in the SD card slot; other SD cards and SIM cards must comply with the intrinsic safety entity parameters given in the certificate. The i.safe MOBILE safety instructions add that the device may only be charged at ambient temperatures between +5°C and +35°C, that all gaskets must be present and functional, and that the device must not be exposed to aggressive acids or alkalis. Always follow the certificate and the manufacturer's safety instructions.
Technical Specifications
System and Display
| Model | Type IS930.M1, model M93A01 |
| Operating system | Android 13 according to the datasheet (revision 10/2025); the i.safe MOBILE product page lists Android 14. Android Enterprise Recommended and zero-touch capable according to i.safe MOBILE. |
| Processor | Qualcomm Snapdragon SDM660 octa-core |
| Memory | 4 GB RAM, 64 GB internal memory, microSD up to 512 GB |
| Display | 8.0 inch (20.32 cm), 1200 x 1920 pixels, Corning Gorilla Glass 3rd generation, usable with gloves |
| Cameras | 13 MP autofocus rear camera, 5 MP fixed-focus front camera |
| Battery | 8160 mAh, 3.7 V, Li-Ion, fixed (integrated) |
| Sensors | Accelerometer, gyroscope, magnetic, temperature and humidity, proximity sensors (datasheet) |
| Keys and audio | SOS key for lone worker protection, 2 freely programmable keys, amplified loudspeaker |
Connectivity
| 2G GSM | 850/900/1800/1900 MHz |
| 3G WCDMA | UMTS B1, B2, B4, B5, B8 |
| 4G LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12 with MFBI, B13, B14, B17, B20, B25, B26, B28A, B28B, B29, B30, B66 |
| 4G LTE-TDD | B38, B39, B40, B41 |
| 4G LTE-SCDMA | B34, B39 |
| Wi-Fi | 2.4 GHz and 5 GHz, IEEE 802.11 a/b/g/n/ac/e/k/r/h, hotspot with up to 8 connections |
| Bluetooth | 5 |
| NFC | Yes |
| Positioning | GPS, A-GPS, Glonass, Beidou, Galileo |
| SIM | Micro-SIM |
| Interfaces | Earphone jack, USB-C, magnetic charger port, 24-pin docking interface. Charging and wired data connections outside the hazardous area only. |
Physical Specifications
| Dimensions | 237 x 156 x 22 mm |
| Weight | 890 g according to the datasheet (the i.safe MOBILE product page states 866 g) |
| Ingress protection | IP68 dust-proof and waterproof (datasheet); IP64 and IP6X in the Ex marking |
| Ruggedness | MIL-STD-810H |
| Operating temperature | -20°C to +60°C |
Applications
The certificates describe the IS930.M1 as a rugged industrial tablet designed for use in mines susceptible to firedamp. i.safe MOBILE positions it for maintenance applications in the IoT environment. Typical tasks include:
- Inspection and maintenance rounds with digital checklists and work orders
- Photo documentation with the 13 MP autofocus rear camera
- Viewing drawings and technical documentation on the 8 inch display
- Lone worker protection via the SOS key, with a third-party application
What's in the Box
Set content according to the i.safe MOBILE datasheet:
- IS930.M1 tablet with integrated battery
- Hand strap
- i.safe PROTECTOR 2.0 Type C USB cable
- i.safe PROTECTOR 3.0 USB magnetic charger cable
- Universal power adapter
- Display protection foil
- Quick start manual and safety instructions
The i.safe MOBILE product page lists a slightly different set, with an earphone and without a power adapter.
Optional accessories (not included): IS-DS930.1 docking station set (Gigabit Ethernet RJ45 and 3 x USB), IS-MC930.1 multi charger for six devices, leather case IS930.x/IS910.x (black or yellow), belt holder with KontaktPro, 4-point harness system, 30 mm shoulder strap, vehicle mount IS930.x/IS910.x/IS94x.x, IS-Stylus set, display protection foil (10 pcs), PanzerGlass, microSD cards IS-SD164.1 and IS-SD1128.1. Prices on request.
Documentation
- i.safe MOBILE product page IS930.M1
- i.safe MOBILE IS930.M1 datasheet (PDF)
- ATEX certificate EPS 19 ATEX 1 128 X, revision 1 (PDF)
- IECEx certificate IECEx EPS 19.0063X, issue 2
- EU Declaration of Conformity IS930.M1 (PDF)
- ANZEx certificate ANZEx 20.2001X (PDF)
- IS930.M1 safety instructions (PDF)
- IS930.M1 operating manual (PDF)
