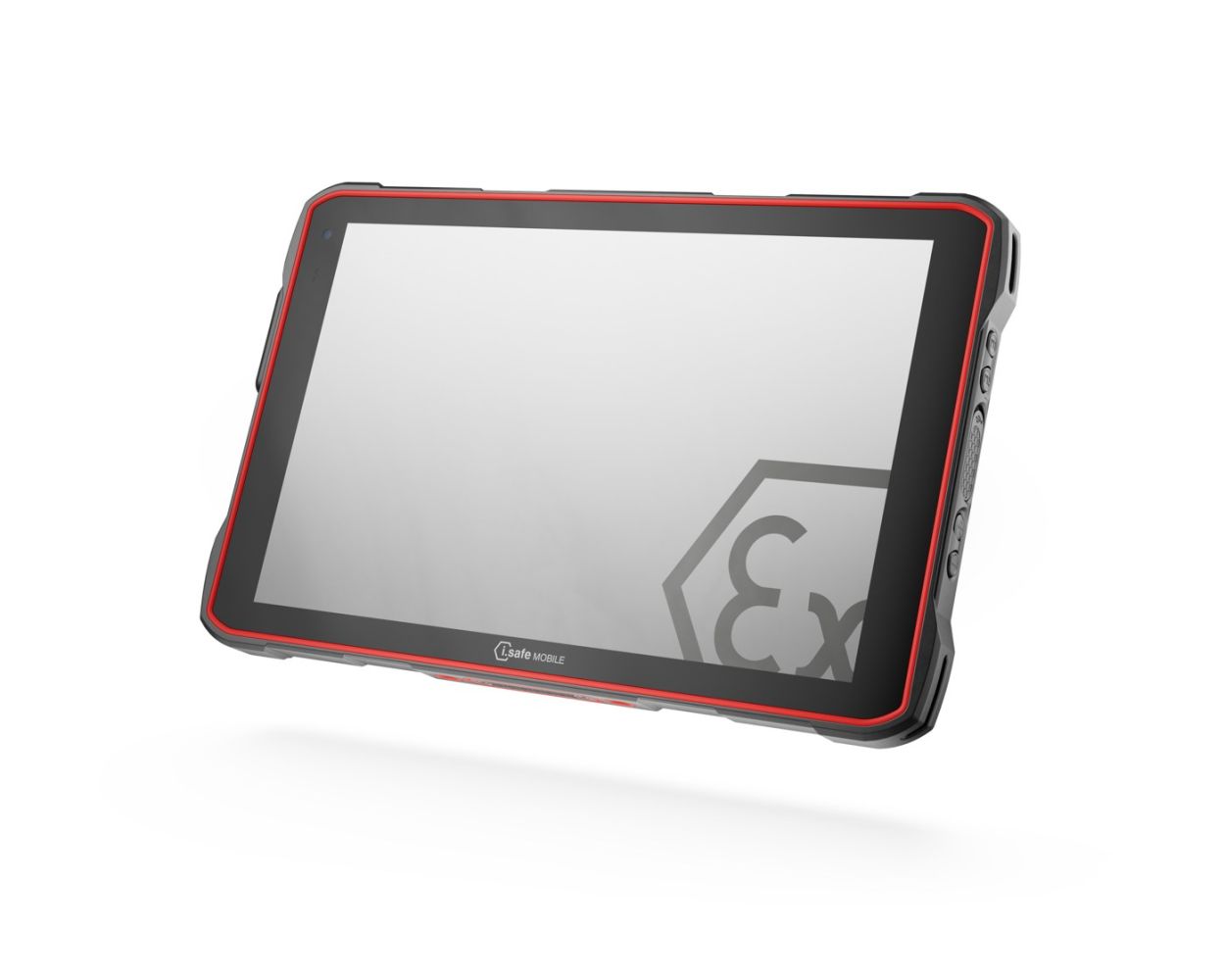

i.safe MOBILE IS940.M1 ATEX M1 Mining and Zone 1/21 Tablet, Android
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Intrinsically safe 10.1 inch Android 14 tablet certified for mines susceptible to firedamp (ATEX I M1 Ex ia I Ma, IECEx Ex ia I Ma) and Zone 1/21 (Ex ib IIC T4 Gb, Ex ib IIIC T135°C Db). It has 5G, Wi-Fi 6, a 50 MP rear camera, IP68 and a replaceable 8160 mAh battery.
i.safe MOBILE IS940.M1 ATEX M1 Mining and Zone 1/21 Android Tablet
Certifications: ATEX • IECEx • ANZEx • IA (South Africa) | Zones: Group I M1 (mining) • Zone 1/21 (also Zone 2/22) | Protection: Ex ia I Ma • Ex ib IIC T4 Gb • Ex ib IIIC T135°C Db • IP68 | Manufacturer: i.safe MOBILE
The i.safe MOBILE IS940.M1 is an intrinsically safe 10.1 inch Android tablet that is certified for mines susceptible to firedamp and for Zone 1/21 hazardous areas. In the ATEX marking, equipment group I stands for equipment intended for mines susceptible to firedamp (methane), and category M1 means the equipment is designed with a very high level of protection so that it can remain in operation while an explosive atmosphere is present (equipment protection level Ma). The additional markings II 2G Ex ib IIC T4 Gb and II 2D Ex ib IIIC T135°C Db cover gas and dust areas in Zone 1/21 outside mining.
The tablet runs Android 14 on a Qualcomm QCM6490 octa-core processor with 8 GB RAM and 128 GB storage, and has 5G, Wi-Fi 6, a 50 MP rear camera and a replaceable 8160 mAh battery. The same ATEX and IECEx certificates also cover the IS945.M1, which is the Windows version of this tablet.
Order code: 01-00940011-001-001 (one configuration: 8 GB RAM, 128 GB storage, 5G, Android 14)
Why choose the i.safe MOBILE IS940.M1?
Mining M1 and Zone 1/21 in one device
Ex ia I Ma for mines susceptible to firedamp, plus Ex ib IIC T4 Gb for gas and Ex ib IIIC T135°C Db for dust. Certified under ATEX and IECEx, with ANZEx (Australia/New Zealand) and IA (South Africa) approvals.
10.1 inch display, usable with gloves
10.1 inch (25.65 cm) display with 1200 x 1920 pixels and Corning Gorilla Glass 3rd generation. The touchscreen can be operated with gloves.
5G, Wi-Fi 6 and NFC
5G NR and 4G LTE, Wi-Fi 6, Bluetooth 5.2, NFC and GPS, GLONASS, BeiDou and Galileo positioning. SIM support is 1 nano SIM plus eSIM.
Replaceable 8160 mAh battery
The 8160 mAh Li-Ion battery is replaceable. According to the certificate, the battery may only be replaced outside the hazardous area.
Docking and audio accessories
The 12-pin docking interface for the IS-DS940.M1 docking station allows charging and data transfer within hazardous areas. The 16-pin ISM interface connects approved intrinsically safe audio accessories and add-ons.
Programmable keys and rugged housing
Red function key assignable via the System App, for example for lone worker protection (LWP), and programmable keys on the right side. IP68, MIL-STD-810H and VESA 100 mounting.
Certification
| ATEX marking | I M1 Ex ia I Ma II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db |
| ATEX certificate | EPS 25 ATEX 1 003 X, revision 0, 2025-05-28, issued by Bureau Veritas Consumer Products Services Germany GmbH (notified body 2004) |
| IECEx marking | Ex ia I Ma Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
| IECEx certificate | IECEx EPS 25.0003X, issue 0, 2025-05-28 |
| Equipment covered | IS940.M1 / IS945.M1 intrinsically safe tablet, IS-DS940.M1 docking station |
| Standards | ATEX: EN IEC 60079-0:2018, EN 60079-11:2012, IEC 60079-11:2023 IECEx: IEC 60079-0 Ed. 7.0, IEC 60079-11 Ed. 7.0 |
| Other approvals | ANZEx 25.2005X, issue 0, 2025-06-27 (Australia/New Zealand) IA certificate MTEx-MS/25.0351 X, revision 0, 2025-06-30 (South Africa) |
| Ambient temperature | -20°C to +55°C (charging 0°C to +45°C) |
Reading the marking
I M1, Ma: equipment group I (mines susceptible to firedamp), category M1, equipment protection level Ma
II 2G, Gb: equipment group II, category 2, explosive gas atmospheres; for Zone 1 and Zone 2
II 2D, Db: equipment group II, category 2, combustible dust; for Zone 21 and Zone 22
Ex ia / Ex ib: intrinsic safety "i", protection levels ia and ib
IIC T4: gas group IIC, temperature class T4 (maximum surface temperature 135°C)
IIIC T135°C: dust group IIIC (conductive dust), maximum surface temperature 135°C
Specific conditions of use (X)
- Replace the battery only outside the hazardous area.
- Protect the device from impacts with high impact energy, excessive UV light and high electrostatic charge processes.
- The USB-C interface is protected by an IP interface cover and may only be opened outside the hazardous area.
- Close the 16-pin ISM interface with its cover when it is not in use in the hazardous area.
- Protect the device from oils, greases and hydraulic fluids.
- Permitted ambient temperature -20°C to +55°C; permitted charging temperature 0°C to +45°C.
According to the certificate, only the i.safe PROTECTOR 2.0, other accessories approved by i.safe MOBILE or accessories that ensure Um = 5.88 V may be connected to the USB-C interface. Always follow the certificate and the manufacturer's safety instructions.
Technical Specifications
System and Display
| Model | Type IS940.M1, model M940A01 |
| Operating system | Android 14 |
| Processor | Qualcomm QCM6490 octa-core |
| Memory | 8 GB RAM, 128 GB internal storage, microSD card supported |
| Display | 10.1 inch (25.65 cm), 1200 x 1920 pixels, Corning Gorilla Glass 3rd generation, usable with gloves |
| Cameras | 50 MP autofocus rear camera, 5 MP fixed-focus front camera |
| Battery | 8160 mAh Li-Ion, replaceable (battery type BPIS940A.M1A) |
| Sensors | Accelerometer, gyroscope, light, magnetic, proximity and pressure sensors |
| Keys and audio | Red function key (assignable via System App, e.g. LWP), function keys on the right side (assignable via Button App), amplified loudspeaker |
Connectivity
| 5G NR | n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79 |
| 4G LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12 (with MFBI), B13, B14, B17, B20, B25, B26, B28, B29, B30, B66, B68, B71 |
| 4G LTE-TDD | B38, B39, B40, B41, B42, B43, B48 |
| Wi-Fi | Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax/e/k/r/v |
| Bluetooth | 5.2 |
| NFC | Yes |
| Positioning | GPS, A-GPS, GLONASS, A-GLONASS, BeiDou, Galileo |
| SIM | 1 nano SIM + eSIM |
| Ports | 16-pin ISM interface, 12-pin docking interface (docking station is an optional accessory), USB-C |
Physical Specifications
| Dimensions | 266.17 x 168.46 x 19.82 mm |
| Weight | 1059 g |
| Ingress protection | IP68 (dust and water) |
| Ruggedness | MIL-STD-810H |
| Operating temperature | -20°C to +55°C |
| Mounting | VESA 100 |
Applications
The IS940.M1 is certified for use in mines susceptible to firedamp and in Zone 1/21 areas, for example in oil and gas, chemical and other process plants. Typical tasks include inspection rounds, digital work orders, maintenance documentation with the 50 MP camera and communication with headsets via the ISM interface.
What's in the Box
Set content according to the i.safe MOBILE datasheet:
- IS940.M1 tablet
- Battery
- Hand strap
- i.safe PROTECTOR 2.0 USB-C cable
- Universal power adapter
- Screwdriver
- Display protection foil
- Safety instructions
Accessories listed on the certificate: IS-DS940.M1 docking station, IS-HS2A.1 in-ear headset, IS-PTTB1A.1 PTT button with IS-HDHS1x.1 headset (headband, neckband or helmet mount), IS-SD164.1 and IS-SD1128.1 microSD cards. Accessories are not included.
