i.safe MOBILE IS945.2 ATEX Zone 2/22 Windows Tablet, 10.1 inch
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Intrinsically safe 10.1 inch Windows 11 IoT Enterprise tablet for ATEX/IECEx Zone 2/22 (Ex ic IIC T4 Gc, Ex ic IIIC T135°C Dc) with Qualcomm QCM6490, 8 GB RAM, 128 GB storage, 5G and Wi-Fi 6. IS945.2 Tablet Set (order code 01-00945002-001-001) with replaceable 8160 mAh battery, IP68 and MIL-STD-810H, EUR 2,517 excl. VAT.

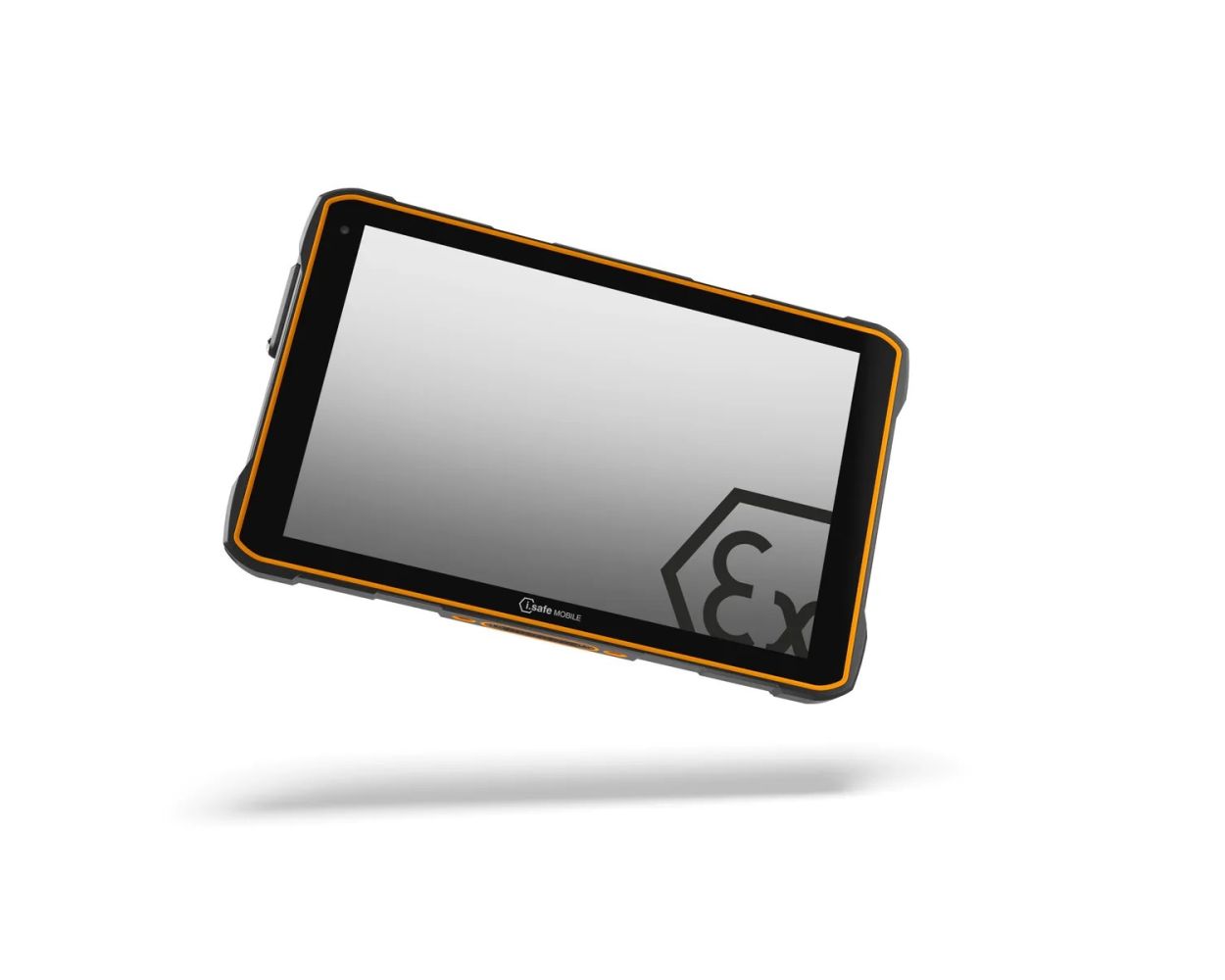

i.safe MOBILE IS945.2 ATEX Zone 2/22 Windows Tablet
Certifications: ATEX Zone 2/22 • IECEx Zone 2/22 • Class I/II Division 2 (QPS) | Protection: Ex ic (intrinsic safety) • IP68 • MIL-STD-810H | Operating system: Windows 11 IoT Enterprise for Arm64 | Manufacturer: i.safe MOBILE GmbH
The i.safe MOBILE IS945.2 is a 10.1 inch Windows tablet for use in hazardous areas classified as Zone 2 (gas) and Zone 22 (dust). It is certified under ATEX and IECEx with the protection concept intrinsic safety, level ic, and carries the marking II 3G Ex ic IIC T4 Gc and II 3D Ex ic IIIC T135°C Dc. It is intended for buyers looking for an intrinsically safe or explosion proof Windows tablet for Zone 2 and Zone 22.
The tablet runs Windows 11 IoT Enterprise LTSC for Arm64 on a Qualcomm QCM6490 octa-core processor, with 8 GB RAM, 128 GB internal memory and microSD support. It connects via 5G, 4G LTE, Wi-Fi 6 and Bluetooth 5.2 and is powered by a replaceable 8160 mAh battery. ATEXshop supplies the IS945.2 Tablet Set, order code 01-00945002-001-001, for EUR 2,517 excl. VAT.
Why choose the i.safe MOBILE IS945.2?
Certified for Zone 2 and Zone 22
ATEX certificate EPS 25 ATEX 1 002 X and IECEx certificate IECEx EPS 25.0002X, both issued by Bureau Veritas. Gas group IIC with temperature class T4, dust group IIIC with a maximum surface temperature of 135°C. Permitted ambient temperature -20°C to +55°C.
Windows 11 IoT Enterprise on Arm64
Qualcomm QCM6490 octa-core processor with 8 GB RAM and 128 GB internal memory, expandable with microSD. As the operating system runs on the Arm64 platform, check your software and peripherals before deployment.
5G, 4G LTE and Wi-Fi 6
5G NR and 4G LTE with 1 nano-SIM plus eSIM, Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax/e/k/r/v) and Bluetooth 5.2. Positioning via GPS, A-GPS, GLONASS, A-GLONASS, BeiDou and Galileo. The manufacturer positions the tablet for 4G/5G campus networks and Wi-Fi 6 networks.
10.1 inch display, usable with gloves
10.1 inch (25.65 cm) display with 1200 x 1920 pixels and Corning Gorilla Glass of the 3rd generation. The touchscreen can be operated with gloves. 12 MP autofocus rear camera and 5 MP fixed-focus front camera.
Replaceable battery and docking
Replaceable 8160 mAh battery (battery type BPIS945A.2A); the battery may only be replaced outside the hazardous area. According to the certificate, the 12-pin docking interface for the optional IS-DS940.1 docking station allows charging and data transfer also within hazardous areas.
Rugged housing and programmable keys
IP68 dust- and waterproof and MIL-STD-810H. Red function key and right-hand function keys, assignable via the keyboard manager utility, for example for lone worker protection (SOS) applications. Amplified loudspeaker and VESA 100 mounting.
Certification
| Certified equipment | IS940.2 / IS945.2 intrinsically safe tablet (IS945.2 with Windows operating system, IS940.2 with Android operating system) |
| Manufacturer | i.safe MOBILE GmbH, Lauda-Koenigshofen, Germany |
| ATEX marking | II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc |
| ATEX certificate | EPS 25 ATEX 1 002 X, Revision 0 (31 March 2025), Certificate of Conformity based on a voluntary assessment by Bureau Veritas Consumer Products Services Germany GmbH (identification number 2004, as stated in the EU Declaration of Conformity) |
| IECEx marking | Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc |
| IECEx certificate | IECEx EPS 25.0002X, Issue 0 (31 March 2025), test report DE/EPS/ExTR25.0002/00 |
| Certification body | Bureau Veritas Consumer Products Services Germany GmbH, Türkheim, Germany |
| Standards (ATEX) | EN IEC 60079-0:2018, EN 60079-11:2012, IEC 60079-11:2023 |
| Standards (IECEx) | IEC 60079-0 (Edition 7.0), IEC 60079-11 (Edition 7.0) |
| Protection concept | Intrinsic safety "i", level of protection ic |
| Zones and EPL | Zone 2 (gas), EPL Gc, category 3G Zone 22 (dust), EPL Dc, category 3D |
| Gas group and temperature class | IIC, T4 |
| Dust group and maximum surface temperature | IIIC, T135°C |
| Other approvals | North America: QPS Certificate of Compliance LR3081-9 (26 November 2025), Class I, Division 2, Groups A, B, C, D, T4; Class II, Division 2, Groups F, G, 155°C; Class III; IP64; -20°C to +55°C; charging 0°C to +45°C (CSA C22.2 No. 213, UL 121201). IP68 is the rating given in the i.safe MOBILE datasheet. IA (South Africa) and KCs (South Korea), as listed by the manufacturer |
| EU Declaration of Conformity | i.safe MOBILE GmbH, 11 February 2026, Directives 2014/34/EU, 2014/53/EU and 2011/65/EU (2015/863/EU) |
| Ambient temperature | -20°C to +55°C (operation) 0°C to +45°C (charging) |
Specific conditions of use (X)
Both certificates carry the suffix X. The following specific conditions of use apply:
- The battery may only be replaced outside the hazardous area.
- The device must be protected against excessive UV light and high electrostatic charge processes.
- The USB-C interface is protected by an IP interface cover and may only be opened outside the hazardous area.
- The 16-pin ISM interface must be closed with its cover when it is not in use in the hazardous area.
- The permitted ambient temperature range is -20°C to +55°C; the permitted charging temperature range is 0°C to +45°C.
According to the certificate, the 12-pin docking interface may remain open inside the hazardous area, and commercially available microSD and nano-SIM cards may be used in their slots in the hazardous area. The 16-pin ISM interface may be used in the hazardous area with approved accessories, including the IS-HS2A.1 in-ear headset and the IS-PTTB1A.1 PTT button with an IS-HDHS1x.1 headset. For installations in North America, the conditions of QPS certificate LR3081-9 apply.
Technical specifications
Performance and display
| Type and model | IS945.2, model M945A01 |
| Operating system | Windows 11 IoT Enterprise LTSC for Arm64 |
| Processor | Qualcomm QCM6490 Octa Core |
| Memory | 8 GB RAM, 128 GB internal memory, microSD card supported |
| Display | 10.1 inch (25.65 cm), 1200 x 1920 pixels, Corning Gorilla Glass 3rd generation, usable with gloves |
| Cameras | 12 MP autofocus rear camera, 5 MP fixed-focus front camera |
| Sensors | Accelerometer, gyroscope, light, magnetic, proximity and pressure sensors |
| Battery | 8160 mAh, replaceable (battery type BPIS945A.2A) |
| Further features | Red function key and right-hand function keys, assignable via keyboard manager utility; amplified loudspeaker |
Connectivity
| 5G NR | n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79 |
| 4G LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12 (with MFBI), B13, B14, B17, B20, B25, B26, B28, B29, B30, B66, B68, B71 |
| 4G LTE-TDD | B38, B39, B40, B41, B42, B43, B48 |
| SIM | 1 nano-SIM + eSIM |
| Wi-Fi | Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax/e/k/r/v |
| Bluetooth | 5.2 |
| Positioning | GPS, A-GPS, GLONASS, A-GLONASS, BeiDou, Galileo |
| Interfaces | USB-C 16-pin ISM interface 12-pin ISM interface for the docking station (optional accessory) |
Physical specifications
| Dimensions | 266.17 x 168.46 x 19.82 mm |
| Weight | 1059 g |
| Degree of protection | IP68 dust- and waterproof (manufacturer datasheet); the QPS marking for North America states IP64 |
| Military standard | MIL-STD-810H |
| Operating temperature | -20°C to +55°C |
| Mounting | VESA 100 |
| Set content | Tablet, battery, hand strap, USB-C cable, universal power adapter, screwdriver, display protection foil and safety instructions |
| Optional accessories (i.safe MOBILE) | IS-DS940.1 docking station, IS-MC930.1 multi charger set, leather cases (black or yellow), shoulder strap, 4-point harness system, vehicle mount, IS-Stylus set, PanzerGlass display protection |
Applications
i.safe MOBILE designed the IS945.2 for data communication in the process industry and in automation, with integration into the existing system landscape via 4G/5G campus networks or Wi-Fi 6. Typical tasks in areas classified as Zone 2 or Zone 22 include:
- Inspection and maintenance rounds, including predictive maintenance applications
- Documentation with photos taken with the 12 MP rear camera
- Third-party lone worker protection (SOS) applications assigned to the red function key
The IS945.2 is category 3 equipment (EPL Gc and Dc). It is suitable for Zone 2 and Zone 22 only, not for Zone 0, 1, 20 or 21. For Zone 1/21, i.safe MOBILE offers the IS945.1 (Ex ib), and for mining the IS945.M1. The IS940.2 is the Android version on the same certificates.
Documentation
- Datasheet i.safe MOBILE IS945.2 (PDF)
- ATEX Certificate of Conformity EPS 25 ATEX 1 002 X (PDF)
- IECEx certificate IECEx EPS 25.0002X (IECEx online certificate system)
- EU Declaration of Conformity IS945.2 (PDF)
- QPS Certificate of Compliance LR3081-9, North America (PDF)
The operating manual and safety instructions are available on the i.safe MOBILE product page for the IS945.2.
