i.safe MOBILE IS945.M1 ATEX M1 Mining and Zone 1/21 Tablet, Windows
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Intrinsically safe 10.1 inch Windows 11 IoT Enterprise tablet for mines susceptible to firedamp (Group I, M1) and Zone 1/21, certified under ATEX and IECEx with the markings Ex ia I Ma, Ex ib IIC T4 Gb and Ex ib IIIC T135°C Db. Qualcomm QCM6490, 8 GB RAM, 128 GB, 5G, Wi-Fi 6, replaceable 8160 mAh battery and IP68.

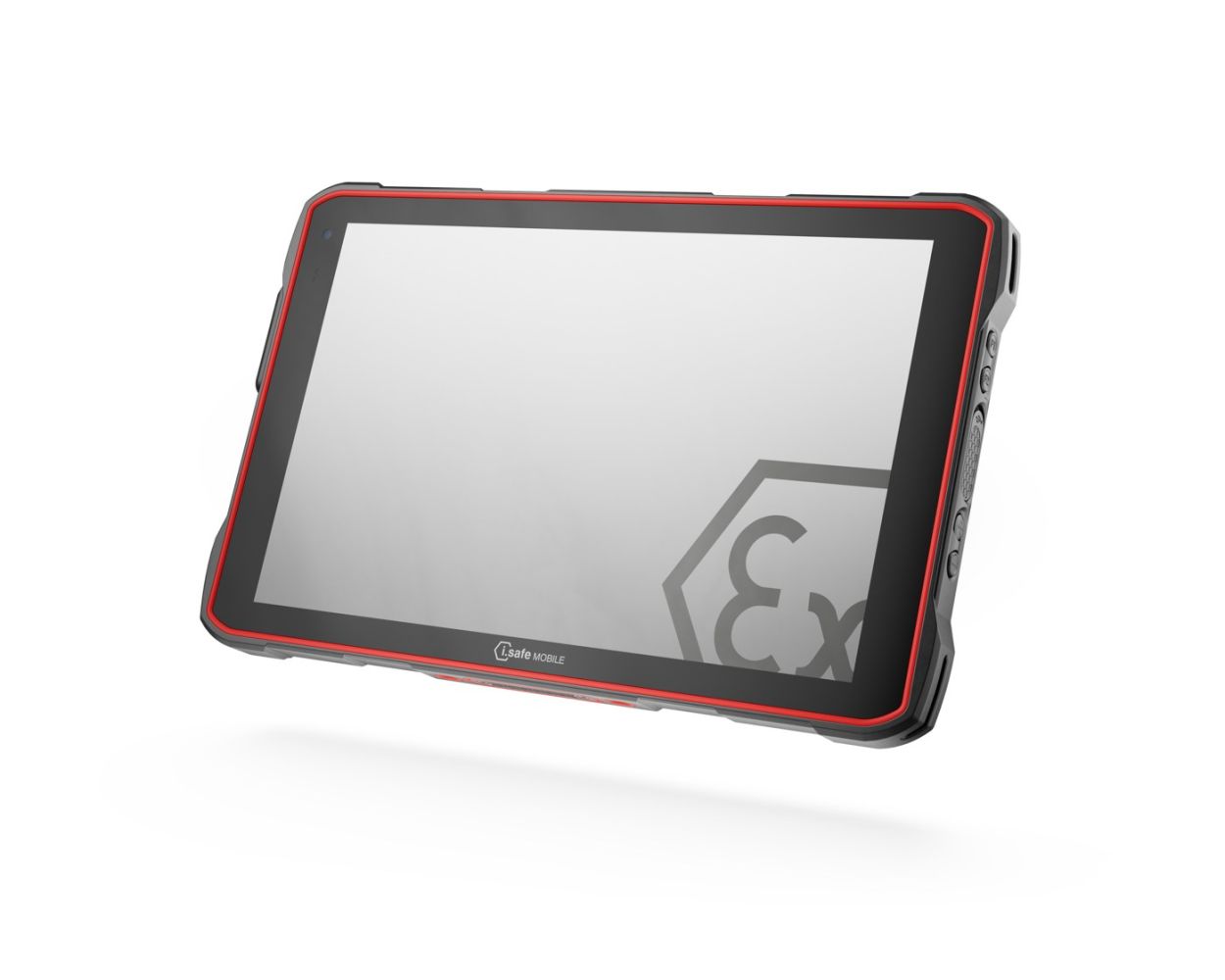

i.safe MOBILE IS945.M1 ATEX Mining M1 and Zone 1/21 Windows Tablet
Certifications: ATEX • IECEx • ANZEx • IA (South Africa) | Zones: Group I M1 (mining) • Zone 1/21 | Protection: Ex ia I Ma • Ex ib IIC T4 Gb • Ex ib IIIC T135°C Db • IP68 | Operating system: Windows 11 IoT Enterprise for Arm64 | Manufacturer: i.safe MOBILE GmbH
The i.safe MOBILE IS945.M1 is a 10.1 inch Windows tablet for use in mines susceptible to firedamp (equipment group I, category M1) and in Zone 1/21 hazardous areas. For buyers looking for an explosion proof or intrinsically safe Windows tablet for mining: the protection concept of the IS945.M1 is intrinsic safety, Ex ia for group I and Ex ib for gas and dust, as stated on the certificate.
The tablet runs Windows 11 IoT Enterprise for Arm64 on a Qualcomm QCM6490 octa-core processor with 8 GB RAM and 128 GB internal memory, and supports 5G, 4G LTE, Wi-Fi 6 and Bluetooth 5.2. It is certified under ATEX (EPS 25 ATEX 1 003 X) and IECEx (IECEx EPS 25.0003X), with additional ANZEx and IA (South Africa) approvals. The same certificates cover the Android version of this tablet, the IS940.M1.
Price: EUR 3,487 excl. VAT
Order code: 01-00945011-001-001 (IS945.M1, Windows 11 IoT Enterprise for Arm64, 8 GB RAM, 128 GB, 5G). i.safe MOBILE offers the IS945.M1 in one configuration.
Mention the order code in your order or quote request.
Why choose the IS945.M1?
Mining M1 and Zone 1/21
One device with three markings: I M1 Ex ia I Ma for mines susceptible to firedamp, II 2G Ex ib IIC T4 Gb for gas and II 2D Ex ib IIIC T135°C Db for dust. Category 2G and 2D cover Zone 1/21 and Zone 2/22.
Windows 11 IoT Enterprise
Windows 11 IoT Enterprise for Arm64 on a Qualcomm QCM6490 octa-core processor, with 8 GB RAM, 128 GB internal memory and microSD card support.
5G, LTE and Wi-Fi 6
5G NR and 4G LTE with one nano SIM plus eSIM, Wi-Fi 6, Bluetooth 5.2 and GPS, A-GPS, Glonass, A-Glonass, Beidou and Galileo positioning.
Docking in the hazardous area
According to the certificate, the 12-pin docking interface can be used with the IS-DS940.M1 docking station for charging and data transfer also within hazardous areas. The USB-C interface is for use outside hazardous areas.
Replaceable 8160 mAh battery
The 8160 mAh battery is replaceable. Under the certificate conditions, the battery may be replaced outside explosive hazardous areas only.
Rugged design
IP68 dust- and waterproof, MIL-STD-810H, Corning Gorilla Glass 3rd generation display usable with gloves, VESA 100 mounting and an amplified loudspeaker. Usable from -20 °C to +55 °C.
Certification
| ATEX marking | I M1 Ex ia I Ma II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db |
| ATEX certificate | EU-type examination certificate EPS 25 ATEX 1 003 X, Revision 0 (28 May 2025), issued by Bureau Veritas Consumer Products Services Germany GmbH, notified body 2004 |
| IECEx marking | Ex ia I Ma Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
| IECEx certificate | IECEx EPS 25.0003X, Issue 0 (28 May 2025) |
| Other approvals | ANZEx 25.2005X, Issue 0 (27 June 2025), Australia and New Zealand IA certificate MTEx-MS/25.0351 X, Revision 0 (30 June 2025), South Africa |
| Groups and zones | Group I, category M1 (mines susceptible to firedamp) Group II, category 2G: Zone 1 and Zone 2 (gas) Group II, category 2D: Zone 21 and Zone 22 (dust) |
| Protection concept | Intrinsic safety "i": Ex ia (group I), Ex ib (gas and dust) |
| Ambient temperature | -20 °C to +55 °C (charging 0 °C to +45 °C) |
| Standards (ATEX) | EN IEC 60079-0:2018, EN 60079-11:2012, IEC 60079-11:2023 |
| Standards (IECEx) | IEC 60079-0:2017 (Ed. 7.0), IEC 60079-11:2023 (Ed. 7.0) |
| Certified equipment | IS940.M1 / IS945.M1 intrinsically safe tablet, IS-DS940.M1 docking station |
| Manufacturer | i.safe MOBILE GmbH, Lauda-Koenigshofen, Germany |
Reading the marking
I M1 Ex ia I Ma: equipment group I (mines susceptible to firedamp), category M1, intrinsic safety level "ia", equipment protection level Ma.
II 2G Ex ib IIC T4 Gb: equipment group II, category 2G for gas atmospheres in Zone 1 and Zone 2, intrinsic safety level "ib", gas group IIC, temperature class T4 (maximum surface temperature 135°C), equipment protection level Gb.
II 2D Ex ib IIIC T135°C Db: category 2D for dust atmospheres in Zone 21 and Zone 22, intrinsic safety level "ib", dust group IIIC, maximum surface temperature 135°C, equipment protection level Db.
Not for Zone 0 or Zone 20: the tablet is category 2 equipment for gas and dust.
Specific conditions of use (X)
The certificate numbers carry the suffix X. The ATEX and IECEx certificates state the following specific conditions of use:
- The battery may be replaced outside explosive hazardous areas only.
- The device must be protected from impacts with high impact energy, against excessive UV light emission and against high electrostatic charge processes.
- The USB-C interface is protected by an IP interface cover and may only be opened outside the hazardous areas.
- The 16-pin ISM interface must be closed with the corresponding cover when not in use in hazardous areas.
- The device shall be protected from exposure to oils, greases and hydraulic fluids.
- The permitted ambient temperature range is -20 °C to +55 °C.
- The permitted charging temperature range is 0 °C to +45 °C.
Technical Specifications
System and display
| Model | IS945.M1, model M945A01 |
| Operating system | Windows 11 IoT Enterprise for Arm64 |
| Processor | Qualcomm QCM6490 Octa Core |
| Memory | 8 GB RAM, 128 GB internal memory, microSD card supported |
| Display | 10.1 inch (25.65 cm), 1200 x 1920 pixels, Corning Gorilla Glass 3rd generation, usable with gloves |
| Cameras | 12 MP AF rear camera, 5 MP FF front camera |
| Sensors | Accelerometer, gyroscope, light, magnetic, proximity and pressure sensors |
| Buttons | Programmable red key and programmable function keys on the right side, assignable via the keyboard manager utility |
| Audio | Amplified loudspeaker |
Connectivity and interfaces
| 5G NR | n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| 4G LTE-FDD | B1/2/3/4/5/7/8/12 with MFBI/13/14/17/20/25/26/28/29/30/66/68/71 |
| 4G LTE-TDD | B38/39/40/41/42/43/48 |
| SIM | 1 nano SIM + eSIM |
| Wi-Fi | Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax/e/k/r/v |
| Bluetooth | 5.2 |
| Positioning | GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo |
| USB-C | Charging and data transfer outside hazardous areas. Only the i.safe PROTECTOR 2.0, other accessories approved by i.safe MOBILE or accessories that ensure Um = 5.88 V may be connected. |
| 16-pin ISM interface | For approved audio accessories and add-ons within hazardous areas, including the IS-HS2A.1 in-ear headset and the IS-PTTB1A.1 PTT button with an IS-HDHS1x.1 headset |
| 12-pin docking interface | For the IS-DS940.M1 docking station (optional accessory), charging and data transfer also within hazardous areas |
Physical specifications
| Dimensions | 266.17 x 168.46 x 19.82 mm |
| Weight | 1059 g |
| Battery | 8160 mAh, replaceable |
| Ingress protection | IP68 dust- and waterproof |
| Ruggedness | MIL-STD-810H |
| Operating temperature | -20 °C to +55 °C (charging 0 °C to +45 °C) |
| Mounting | VESA 100 |
| Set content | Tablet, battery, hand strap, i.safe PROTECTOR 2.0 USB-C cable, screwdriver, display protection foil and safety instructions. A power adapter is not listed in the set content. |
Applications
Underground mining
Use in mines susceptible to firedamp, under the group I, category M1 marking.
Zone 1/21 process areas
Use in Zone 1, 2, 21 and 22 for gas groups IIA, IIB and IIC up to temperature class T4, and dust groups IIIA, IIIB and IIIC (maximum surface temperature 135°C).
Maintenance and inspection
Running Windows applications on site, for example for maintenance, inspection and documentation with the 12 MP rear camera.
Lone worker and SOS
The red key is programmable, for example for a lone worker protection or SOS application.
