Metron ATEX - for LPG tank level monitoring
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

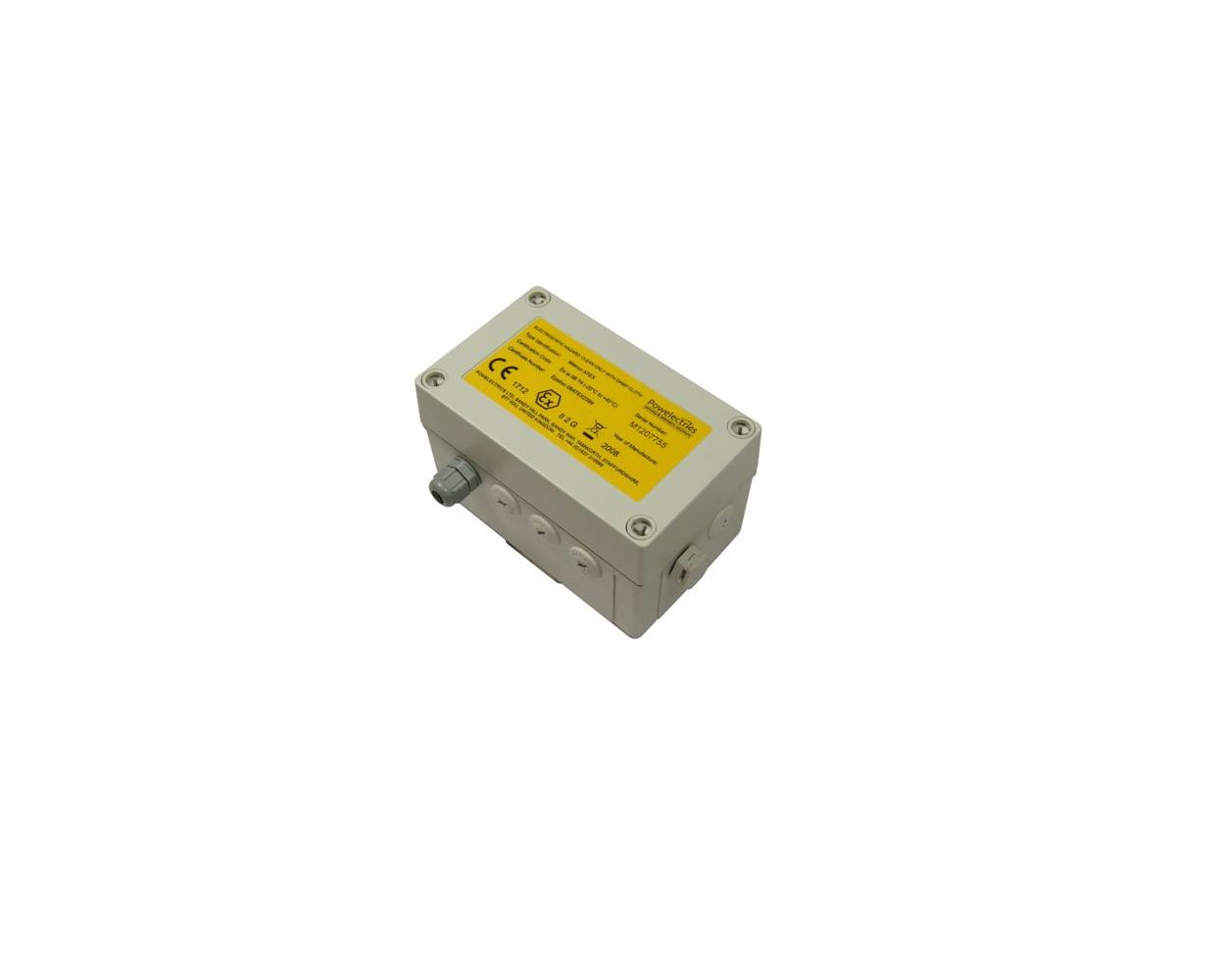

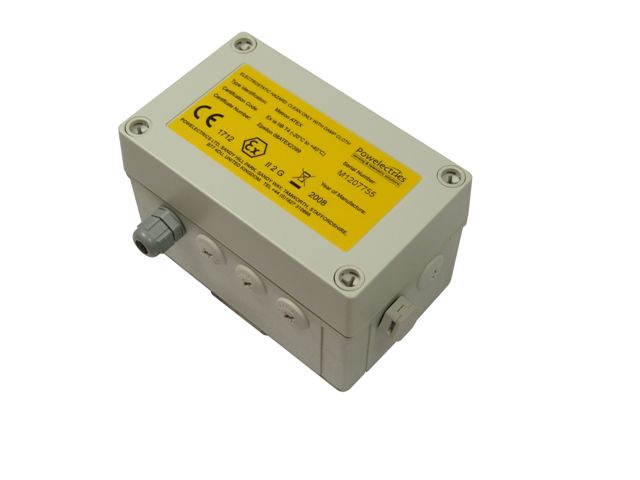

Description Metron ATEX - for LPG tank level monitoring
The METRON ATEX is a class leading solution. Installation is quick and easy, with no intrusion
to the customer’s property. The multi channel unit can monitor up to 6 tanks
which helps keep costs down on commercial installations where multiple tanks are commonplace.
One important feature is battery performance. The METRON ATEX has a 5
year battery life with 1 transmission every day. The quickest payback is on industrial
applications where predicting the consumption is difficult, so daily transmissions make
for a much better solution.

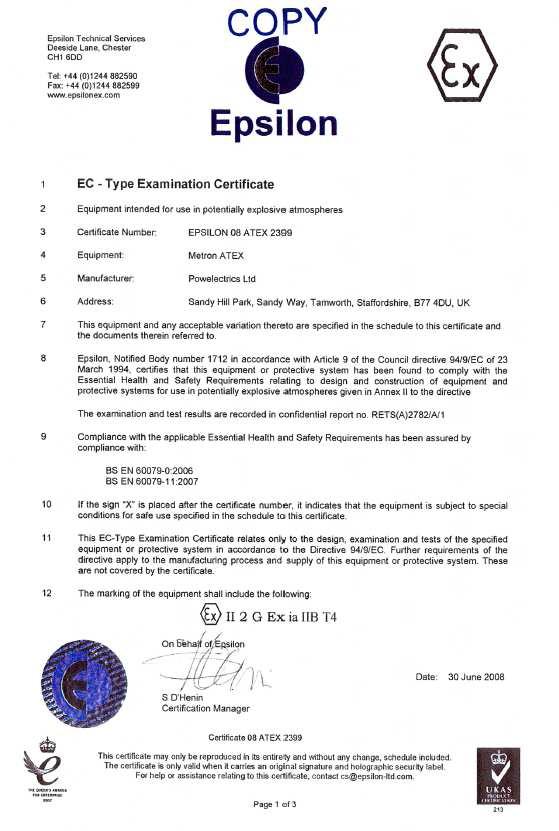

The METRON ATEX carries all the relevant approvals. The device has been
tested and approved to cover ATEX, and the manufacturing process is also approved
and audited. The WEEE regulations relating to batteries was changed in October 2009 –
the Powelectrics METRON ATEX is fully compliant. The design has been completed to
ensure the device complies with FCC, PTCRB and UL approval.
Specifications Metron ATEX - for LPG tank level monitoring
General: Number of Inputs: 6
Battery Life: Typically > 5 Years
Battery Included: 3.6 volt, 17AH
Connectors: 3 Pin 3.81mm Pitch / Sensor
Warranty: 24 Months RTB
Form Factor: Enclosure: IP67 Rated, Polycarbonate
Dimensions: 130 x 80 x 75 (mm)
Weight: ~ 0.7 Kg
Electrical: Operating Frequency: 900/1800/1900Mhz
Supply: 3.6V @ 0.5A
Excitation Supply: ~ 5 v
Power consumption (Sleep): ~ 5μA
Power consumption (Active): ~ 6mA
Power consumption (Modem): ~ 12 – 250mA
Input Impedance: 33KΩ (0-5)
Resolution: 10 bit (1024 Increments)
Environmental:Temperature: -15 to +45 ºC
Humidity: 20 to 80% non-condensing
METRON Atex - LPG Tank level monitoring
Description Metron ATEX - for LPG tank level monitoring
The METRON ATEX is a class leading solution. Installation is quick and easy, with no intrusion
to the customer’s property. The multi channel unit can monitor up to 6 tanks
which helps keep costs down on commercial installations where multiple tanks are commonplace.
One important feature is battery performance. The METRON ATEX has a 5
year battery life with 1 transmission every day. The quickest payback is on industrial
applications where predicting the consumption is difficult, so daily transmissions make
for a much better solution.
The METRON ATEX carries all the relevant approvals. The device has been
tested and approved to cover ATEX, and the manufacturing process is also approved
and audited. The WEEE regulations relating to batteries was changed in October 2009 –
the Powelectrics METRON ATEX is fully compliant. The design has been completed to
ensure the device complies with FCC, PTCRB and UL approval.
Specifications Metron ATEX - for LPG tank level monitoring
General: Number of Inputs: 6
Battery Life: Typically > 5 Years
Battery Included: 3.6 volt, 17AH
Connectors: 3 Pin 3.81mm Pitch / Sensor
Warranty: 24 Months RTB
Form Factor: Enclosure: IP67 Rated, Polycarbonate
Dimensions: 130 x 80 x 75 (mm)
Weight: ~ 0.7 Kg
Electrical: Operating Frequency: 900/1800/1900Mhz
Supply: 3.6V @ 0.5A
Excitation Supply: ~ 5 v
Power consumption (Sleep): ~ 5μA
Power consumption (Active): ~ 6mA
Power consumption (Modem): ~ 12 – 250mA
Input Impedance: 33KΩ (0-5)
Resolution: 10 bit (1024 Increments)
Environmental:Temperature: -15 to +45 ºC
Humidity: 20 to 80% non-condensing
METRON Atex - LPG Tank level monitoring
