Neos X NOXB/02L/LE/EM
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

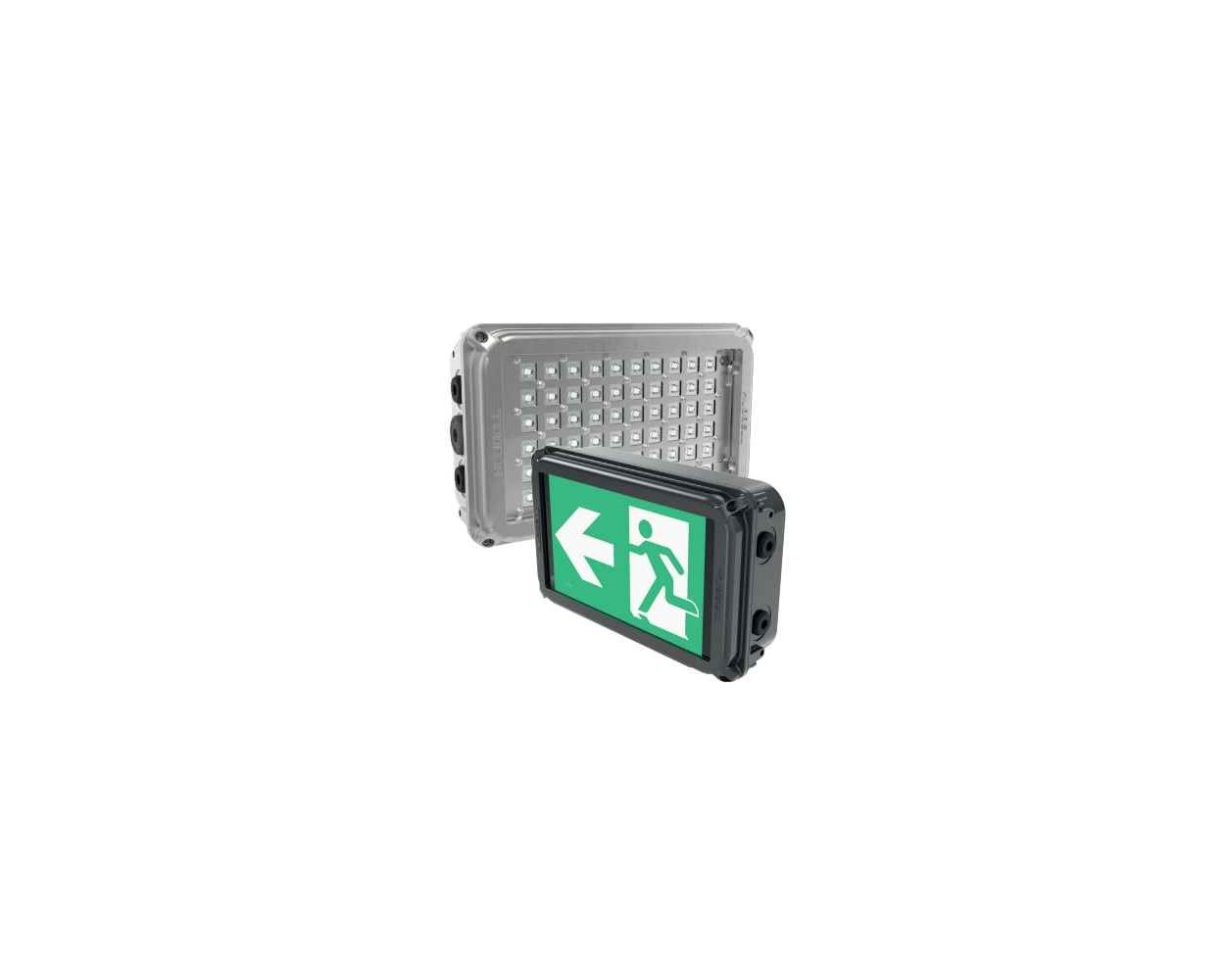

The latest Zone 1 LED X Series luminaire, the NEO X bulkhead focuses on
the needs of the user by combining multiple lumen outputs with long term
maintenance benefits. Providing a market leading range of photometric
outputs using our X-series optics to efficiently illuminate any Zone 1/21
application, the NEO X is a true successor to the NexLED and Nevis ranges of
bulkhead luminaires.
With a certified temperature range from-55°C up to +55°C the NEO X is the
bulkhead for every environment and application. The optional benefit of a
hot swap battery with excellent IP allows the maintainable components to
be easily accessible, and ensures that the ground breaking NEO X is suitable
for global use in any harsh or hazardous environment.
| Specification | Details |
|---|---|
| Product Name | NEO X Ex db eb LED Bulkhead |
| Type of Protection | Ex db eb (Flameproof, Increased Safety) |
| Ex tb (Dust Protected Enclosure) | |
| ATEX Classification | Group II Category 2 GD |
| Area Classification | Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14 |
| Certificate | EU Type Examination Certificate: CML22ATEX1473X |
| IECEx Certificate of Conformity: IECEx CML 22.0070X | |
| UK Type Examination Certificate: CML 22UKEX1474X | |
| Coding | Ex db eb IIB+H2 T* Gb |
| Ex tb IIIC T76°C Db IP6X - Refer to table for T rating and Ambient | |
| Enclosure | LM6 Marine grade aluminium body with UV resistant Polycarbonate diffuser |
| Entry | 4 x M20 cable entries (c/w 3x plastic Ex plugs & 1x travel plug) |
| Termination | 3 core 4mm² max conductor with looping, Emergency 4 core 4mm² max conductor with looping |
| Installation | 4 x M6 Mounting holes (supplied with flush mount brackets) |
| Control Gear | Electronic Driver |
| Optical Distribution | Wide beam |
| Colour Temperature (CCT) | 5000K (Cool White) Other temperature and colour options are available. |
| Colour Rendering Index (Ra) | >80 |
| Maintenance | Front access to gearbox lid with 4x M5 retained screws |
| LED Lifetime @ 55°C Ambient | L70 > 200,000hrs |
| System Life @ Ambient | 120,000hrs @ 25°C. (100,000hrs for EM & EMI) |
| Battery | 3 Cell, 3.6V, Ni-MH, 3.7Ah |
| Emergency Duration | 3 Hour Duration (01L - 32% output, 02L - 21% Output) |
| Impact Protection | IK10 |
| Ingress Protection | IP66/67 to EN 60529 |
| Surge Protection | 6kV |
| Electrical Supply | 110-277V AC, 50/60Hz. |
| 127-250V DC | |
| 220-240V AC for EM |
Downloads
HHI-CHL-Mult-NEO-X-DATASHEET-SPEC-UK.pdf
