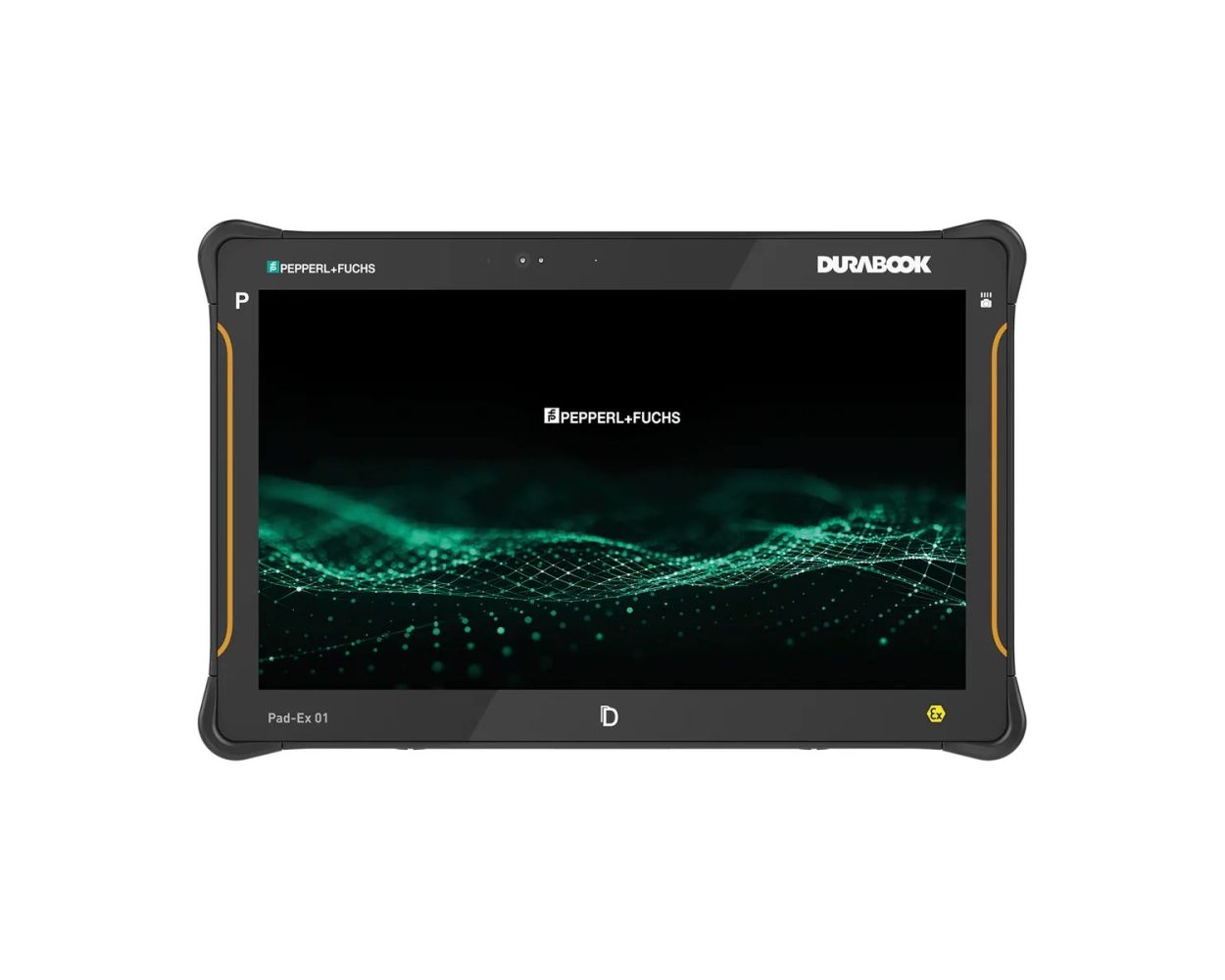

Pad-Ex 01 P12 DZ2 ATEX Zone 2/22 Windows 11 Tablet, 11.6 inch
Certifications: ATEX (EPS 16 ATEX 1 163 X) • IECEx (IECEx EPS 16.0072X) • NEC/CEC Class I, Division 2 (SGS) | Zones: Zone 2 (gas) • Zone 22 (dust) | Protection: Ex ic op is • IP64 • MIL-STD-810H / MIL-STD-461F | Manufacturer: Pepperl+Fuchs (ecom)
The Pad-Ex 01 P12 DZ2 is an 11.6 inch rugged Windows 11 Pro tablet from Pepperl+Fuchs (ecom) for Zone 2 and Zone 22 hazardous areas, and for Class I, Division 2 locations in North America. For buyers looking for an intrinsically safe or explosion proof Windows tablet: the protection concept on the certificates is intrinsic safety Ex ic combined with inherently safe optical radiation op is, with the ATEX marking II 3G Ex ic op is IIC T4 Gc IP64 for gas and II 3D Ex ic op is IIIB T135°C Dc IP64 for dust (EPS 16 ATEX 1 163 X, IECEx EPS 16.0072X).
The tablet has a 12th generation Intel Core i5-1235U processor (Intel Core i7-1255U optional), 16 GB DDR5, a 256 GB NVMe PCIe SSD, a Full HD display with 1000 nits, Intel Wi-Fi 6E, Bluetooth 5.3 and Thunderbolt 4. The base configuration with Core i5, 16 GB, 256 GB and Wi-Fi 6E is EUR 4,112 excl. VAT. Versions with Core i7, LTE, a 1D/2D barcode scanner, without camera or ThinManager Ready are available on request.
Configurations and prices
All configurations below have 16 GB DDR5, a 256 GB NVMe PCIe SSD, Intel Wi-Fi 6E and Bluetooth 5.3. All except the ThinManager Ready version come with Windows 11 Pro (64-bit). The order code is the Pepperl+Fuchs article number, with the type code below it.
| Configuration |
Order code |
Price excl. VAT |
| Core i5-1235U, Wi-Fi 6E, with camera |
480991-100051
PAD-EX01P12DZ2EUNC516256WIF00A |
EUR 4,112 |
| Core i5-1235U, Wi-Fi 6E, without camera |
480991-100055
PAD-EX01P12DZ2EUNN516256WIF00A |
Price on request |
| Core i5-1235U, Wi-Fi 6E, with camera, ThinManager Ready (no pre-installed operating system) |
480991-100049
PAD-EX01P12DZ2EUNC516256WIFRTM |
Price on request |
| Core i7-1255U, LTE + Wi-Fi 6E, with camera |
480991-100060
PAD-EX01P12DZ2EUNC716256LTE00A |
Price on request |
| Core i7-1255U, LTE + Wi-Fi 6E, with camera and 1D/2D barcode scanner |
480991-100058
PAD-EX01P12DZ2EUNC716256L2D00A |
Price on request |
Mention the order code of the configuration you need in your order or quote request.
Why choose the Pad-Ex 01 P12 DZ2?
Zone 2/22 and Division 2
ATEX and IECEx marking Ex ic op is IIC T4 Gc IP64 and Ex ic op is IIIB T135°C Dc IP64. For North America, SGS certificate SGSNA/24/SUW/00031X covers Class I, Division 2, Groups A-D T4 and Class II, Division 2, Class III, Division 1, Groups F, G, T135°C.
Windows 11 Pro, 12th gen Intel Core
Intel Core i5-1235U with vPro, up to 4.4 GHz, or optional Intel Core i7-1255U, up to 4.7 GHz, with Intel Iris Xe graphics. 16 GB DDR5 (4800 MHz), 256 GB NVMe PCIe SSD and TPM 2.0.
11.6 inch Full HD, 1000 nits
1920 x 1080 DynaVueWindows SR display for use in sunlight. Capacitive multitouch with a user selectable touch mode for finger/water, glove or stylus. A stylus pen with tether is included.
Connectivity and ports
Intel Wi-Fi 6E AX211, Bluetooth 5.3 and GPS, Glonass, Beidou and Galileo. Optional LTE with a Sierra Wireless EM7565 module and nano-SIM. Thunderbolt 4, USB 3.2 Gen 2 (Type A), Micro-HDMI and a 35-pin pogo docking connector, for use outside the hazardous area only.
Thin and rugged
298 x 192 x 20 mm and 1200 g. IP64 and MIL-STD-810H / MIL-STD-461F. According to ecom, the tablet is drop-tested from 4 feet.
Data capture
11 MP autofocus rear camera with LED flash and 2 MP front camera (a version without camera is available). Optional 1D/2D barcode scanner with Honeywell N670X Series scan engine. 6 keys, including 2 user-definable keys.
Hazardous area certification
| ATEX marking |
II 3G Ex ic op is IIC T4 Gc IP64
II 3D Ex ic op is IIIB T135°C Dc IP64
(P12 series) |
| ATEX certificate |
EPS 16 ATEX 1 163 X, revision 5, dated 18 December 2023. Certificate of conformity issued by Bureau Veritas Consumer Products Services Germany GmbH based on a voluntary assessment. Equipment: Intrinsically Safe Tablet PC type Pad-Ex 01 *. |
| IECEx marking |
Ex ic op is IIC T4 Gc IP64
Ex ic op is IIIB T135°C Dc IP64
(P12 series) |
| IECEx certificate |
IECEx EPS 16.0072X, issue 6, dated 5 August 2025, status Current. Certification body: Bureau Veritas Consumer Products Services Germany GmbH. Manufacturers: Pepperl+Fuchs SE and ECOM Instruments GmbH. |
| Protection concept |
Intrinsic safety "ic" and inherently safe optical radiation "op is" |
| Standards |
ATEX: EN IEC 60079-0:2018, EN 60079-11:2012, EN 60079-28:2015
IECEx: IEC 60079-0:2017, IEC 60079-11:2011, IEC 60079-28:2015 |
| Zones |
Zone 2 (gas, group IIC, temperature class T4) and Zone 22 (dust, group IIIB, max. surface temperature 135°C). Group IIIB does not cover conductive dust (group IIIC). |
| North America (NEC/CEC) |
SGS certificate SGSNA/24/SUW/00031X, effective 1 March 2025, models Pad-Ex 01 P12 DZ2 and Pad-Ex 01 P12 D2:
Class I, Zone 2, AEx ic IIC T4 Gc IP64
Class I, Div 2, Groups A-D T4
Zone 22, AEx ic IIIB T135°C Dc
Class II, Div 2, Class III, Div 1, Groups F, G, T135°C
Ex ic IIC T4 Gc IP64
Ex ic IIIB T135°C Dc IP64 |
| Other approvals |
INMETRO (Brazil): TÜV 20.1444 X
IA (South Africa): MASC S/19-6224X
CML (Japan): CML 19 JPN 2478 X
KCC (South Korea): 24-KA4BO-0914X / 24-KA4BO-0915X
CCC (China): 2020322309003372 |
| Ambient temperature |
-10°C to +55°C |
| Electrical data (certificate) |
Battery powered, lithium-ion battery pack. Battery types for the P12 include R11AH7-M (3900 mAh, 11.1 V) and R11AH7-H (6900 mAh, 10.8 V). |
The Pad-Ex 01 P12 DZ2 is equipment category 3 (EPL Gc and Dc). It is not intended for Zone 1, Zone 21, Zone 0, Zone 20 or for mining (group I).
Specific conditions of use (X)
- Remove, change or charge the battery pack only outside hazardous areas.
- The impact test according to IEC 60079-0 was performed with reduced height. Protect the device from impacts with high impact energy.
- Protect the device against excessive UV light and against processes that generate high electrostatic charges.
- Never use external connections in hazardous areas. Keep the interface cover closed in hazardous areas.
- Clean the device only with a damp cloth.
- Equipment description on the ATEX certificate: use the device only with the accessories X-Strap, Shoulder-Strap, Hand-Strap or Leathercase approved by the manufacturer.
- SGS certificate (North America): charge only with the supplied charging adaptor type FSP065-RAB, FSP065-REBN2 or FSP065-RBBN3 (FSP Group), in a non-hazardous location only, and close the I/O port cover before entering the hazardous location.
Technical specifications
Platform and display
| Operating system |
Windows 11 Pro (64-bit) with TPM 2.0. ThinManager Ready version (480991-100049): supplied without a pre-installed operating system, with a ThinManager-ready BIOS for booting from ThinManager by Rockwell Automation. Languages: German, English (default). |
| Processor |
Intel Core i5-1235U, 12th gen, with vPro, up to 4.4 GHz
Optional: Intel Core i7-1255U, 12th gen, up to 4.7 GHz |
| Graphics |
Intel Iris Xe |
| Memory and storage |
16 GB DDR5 (4800 MHz), 256 GB NVMe PCIe SSD, microSD card slot (microSDXC) |
| Display |
29.5 cm (11.6 inch) TFT LCD, 16:9, 1920 x 1080 (Full HD), 16 million colours, DynaVueWindows SR |
| Brightness |
1000 cd/m² (nits), can be used in sunlight |
| Touchscreen |
Capacitive multitouch, can be operated while wearing gloves; touch mode for finger/water, glove or stylus |
| Cameras |
Rear: 11 MP autofocus with LED flash
Front: 2 MP
Version without camera available |
| Barcode scanner (optional) |
1D/2D, Honeywell N670X Series scan engine |
| Keys |
On/off, volume up/down, Windows touch button, barcode/camera touch button, programmable touch button |
| Sensors |
Acceleration sensor, gyroscope, e-compass, light sensor |
Connectivity and interfaces
| WLAN |
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax) |
| Bluetooth |
Bluetooth 5.3 |
| GPS |
GPS, Glonass, Beidou, Galileo |
| Mobile network (optional) |
LTE module Sierra Wireless EM7565, 1x nano-SIM
3G HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
4G LTE: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
For the U.S. market, AT&T is the only supported mobile carrier. |
| Ports |
1x Thunderbolt 4, 1x USB 3.2 Gen 2 (Type A), 1x Micro-HDMI, 1x audio in/out (combo jack), 1x microSD (microSDXC), 1x docking connector (35-pin pogo), 1x DC-in jack. Never use external connections in hazardous areas. |
Power, physical and environmental
| Battery |
Li-ion, 43.29 Wh, 11.1 V, 3900 mAh (BP P01 P12 SC, R11AH7-M) |
| High-capacity battery (optional) |
BP P01 P12 HC (R11AH7-H). ecom states up to 15 hours without a charge for this battery. |
| Dimensions |
298 x 192 x 20 mm |
| Weight |
1200 g |
| Degree of protection |
IP64 |
| Ruggedness |
MIL-STD-810H / MIL-STD-461F; drop-tested from 4 feet according to ecom |
| Operating temperature |
-10°C to +55°C |
| Storage temperature |
-10°C to +55°C |
Scope of delivery and accessories
| Scope of delivery |
Pad-Ex tablet, power supply, power cable, dock connector with pass-through, hand strap, documentation, stylus pen with tether |
| Accessories (ecom) |
CA P01 A01, HA P01 A01, LC P01 A01, BP P01 P12 HC (R11AH7-H), BP P01 P12 SC (R11AH7-M), DC P01 HC, ST P01 P12 stylus with tether |
Applications
The ATEX and IECEx certificates describe the Pad-Ex 01 as an intrinsically safe rugged tablet PC for explosive hazardous areas of Zone 2 and Zone 22. The Windows 11 Pro versions run standard Windows software. ecom positions the tablet to complement or replace a desktop PC, laptop or wall-mounted display. Typical tasks include:
- Inspection, maintenance and operator rounds with digital checklists and work orders
- Viewing drawings and technical documentation on the 11.6 inch Full HD display
- Photo documentation with the 11 MP autofocus rear camera
- Scanning 1D/2D barcodes with the optional barcode scanner
- Desk use outside the hazardous area via the optional docking interface
- Field work at, for example, oil and gas, chemical, pharmaceutical and biogas sites with Zone 2 or Zone 22 areas, or Division 2 locations in North America
