POLARIS REMOTE HMI 15" - Zone 1/21
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

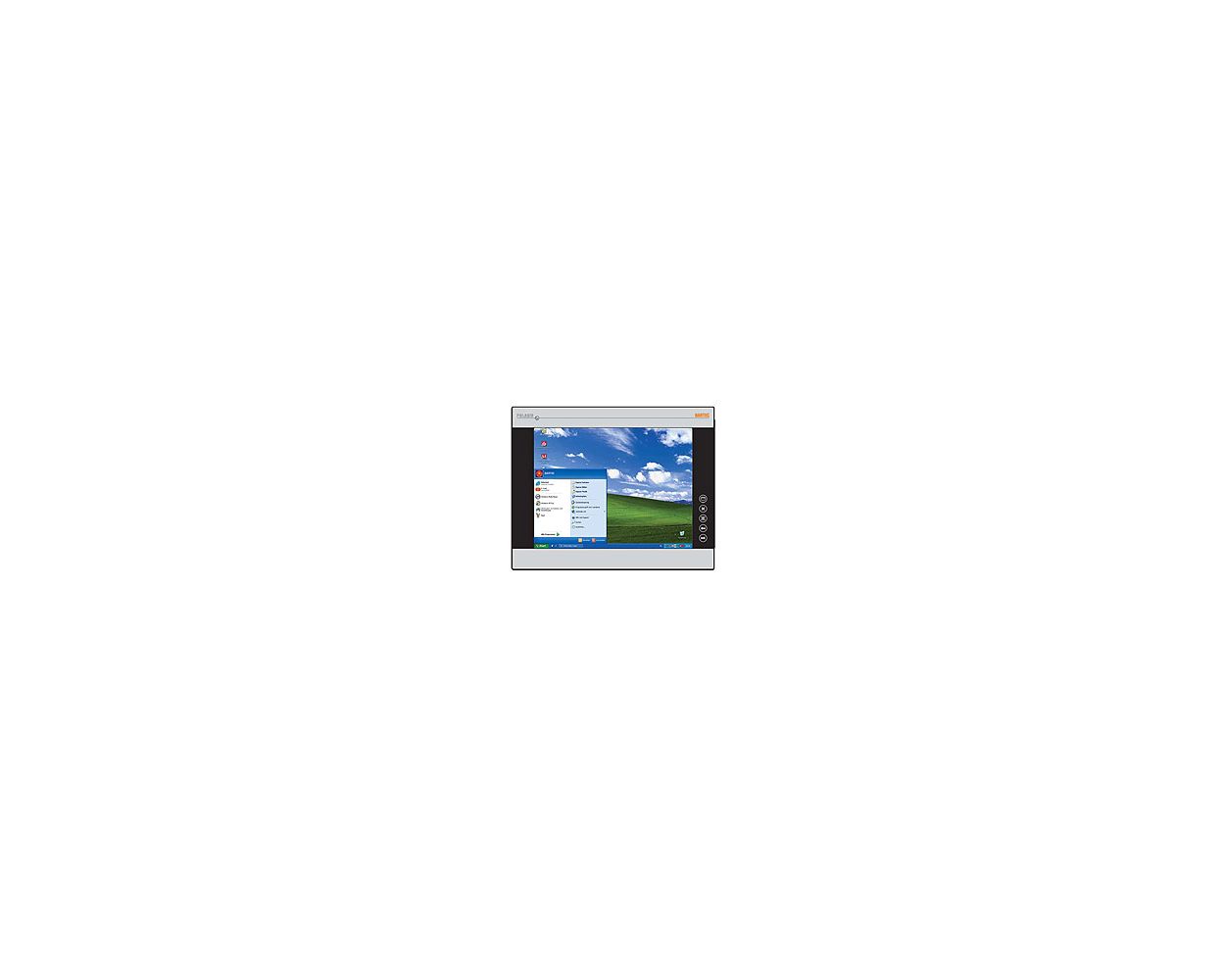

The POLARIS Remote 15" unit by BARTEC is a display which a PC can be operated in safe areas of hazardous areas. Distances of up to 20 km are possible. POLARIS Remote 15" offers the user the possibility to use PC-based process control systems, without restrictions in hazardous areas.
POLARIS REMOTE HMI 15" - Zone 1/21
DESCRIPTION
The POLARIS Remote 15" unit by BARTEC is a display which a PC can be operated in safe areas of hazardous areas. Distances of up to 20 km are possible. POLARIS Remote 15" offers the user the possibility to use PC-based process control systems, without restrictions in hazardous areas. The front panel installation assures ease of mounting. On request, the devices are also available as turn-key system solutions in a Stainless-steel enclosure as wall, floor or ceiling mounting versions. The screen of the Remote 15" is a TFT display with an XGA resolution and is characterised by its excellent brilliance and a very large reading angle. Intrinsically safe input devices can also be connected. The optional touchcreen (intrinsically safe) offers the ultimate in operating comfort. Connection in the safe area is realised via a local unit (included in scope of delivery).
FEATURES
- Easy front panel fitting
- Graphic-capable TFT colour display
- Easy wiring
- Connection of standard PCs in non-hazardous areas
- Optional touch screen
- Transmission through fibre optical waveguide or copper
- OSD menu, with setting keys on the front
- Reduction in costs by cascading several POLARIS remote devices to one PC
- Optional as composite video
TECHNICAL DATA
| Protection class | IP 65 (front) IP 54 (back) |
| Structure | Front-panel fitting |
| Dimensions | 411 mm x 332 mm x approx. 135 mm |
| Wall cut-out | 394.5 mm x 315.5 mm + 0.5 mm |
| Material | Front: polyester foil on anodised aluminium plate (conditionally UV-resistant) Back: bichromated sheet steel |
| Cable length | POLARIS: terminals in the Ex e chamber Local unit: RJ45 connector Up to 300 m via STP copper cable VGA/PS2 (RS232 Touch) Up to 100 m via STP copper cable DVI/USB Optical fibre version POLARIS: ST connector Local unit: LC connector Up to 500 m via multi-mode optical fibre (50 μm/125) DVI/USB Up to 20 km via single-mode optical fibre (9/125 μm) DVI/USB |
| Storage temperature | -20 °C to +50 °C |
| Vibration | 0.7 g/1 mm; 5 Hz - 500 Hz pulse in all 3 axes |
| Shock resistance | 15 g/11 ms pulse in all 3 axes |
| Weight | approx. 23 kg |
| Display | 15" graphics-capable TFT colour display 16.7 million colours XGA resolution 1024 x 768 pixels Brightness 350 cd/m2 Visible area approx. 304 x 228 mm Contrast 700:1 Antireflection-coated glass panel Optional touchscreen |
| Voltage | AC 90 to 253 V, 50 to 60 Hz or DC 24 V ± 10 % on request or DC 12 V (9 to 18 V) on request |
| Power | Pmax. < 60 W |
ACCESSORIES
| Accessory | Price | Datasheet |
| Keyboard | Call For Price |  Datasheet.pdf |
| Enclosure for Mouse and Keyboard | Call For Price | Datasheet.pdf |
| Mouse | Call For Price | Datasheet.pdf |
| Trackball, Joystick | Call For Price | Datasheet.pdf |
| Touchpad | Call For Price | Datasheet.pdf |
| Connection Cable for Keyboard and Mouse | Call For Price | Datasheet.pdf |
| Reinforcement Frame | Call For Price | Datasheet.pdf |
| Mounting Clamps Set | Call For Price | Datasheet.pdf |
| LAN STP Cable | Call For Price | Datasheet.pdf |
| Power Pack for Local Unit | Call For Price | Datasheet.pdf |
| 19" Rack Mounting for Local Unit | Call For Price | Datasheet.pdf |
| USB to PS/2 Converter | Call For Price | Datasheet.pdf |
| Local Unit/STP Cable Black Box Brand | Call For Price | Datasheet.pdf |
| Local Unit/STP Cable IHSE Brand | Call For Price | Datasheet.pdf |
| KVM Cable | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Adapter Connection without Stand | Call For Price | Datasheet.pdf |
| Exclusive II Stainless Steel Enclosure with Adapter Connection | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure - Swivel/Tilt without Desktop Mount | Call For Price | Datasheet.pdf |
| Desk Mounting for Enclosure 15"/19.1" Series | Call For Price | Datasheet.pdf |
| Support Arm for Wall Mounting | Call For Price | Datasheet.pdf |
| Stand for Floor Mounting for Exclusive II Stainless Steel Enclosure | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Additional Fitted Components | Call For Price | Datasheet.pdf |
APPROVALS
Atex:
II 2G Ex db eb q [ib] IIC T4 Gb II 2D Ex tb IIIC T120 °C Db
IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db
DOWNLOADS
PRICES
ATEX and IECEx Zone 1 and 21
| Distance up to 100 m via STP cable DVI/USB | 17-71V2-4017 | € 7.498,50 |
| Distance up to 300 m via STP cable VGA/PS2 | 17-71V2-4000 | € 7.498,50 |
ATEX Zone 2 and 22
| Distance up to 100 m via STP cable DVI/USB | B7-72V2-4017 | € 5.998,50 |
| Distance up to 300 m via STP cable VGA/PS2 | B7-72V2-4000 | € 5.998,50 |
