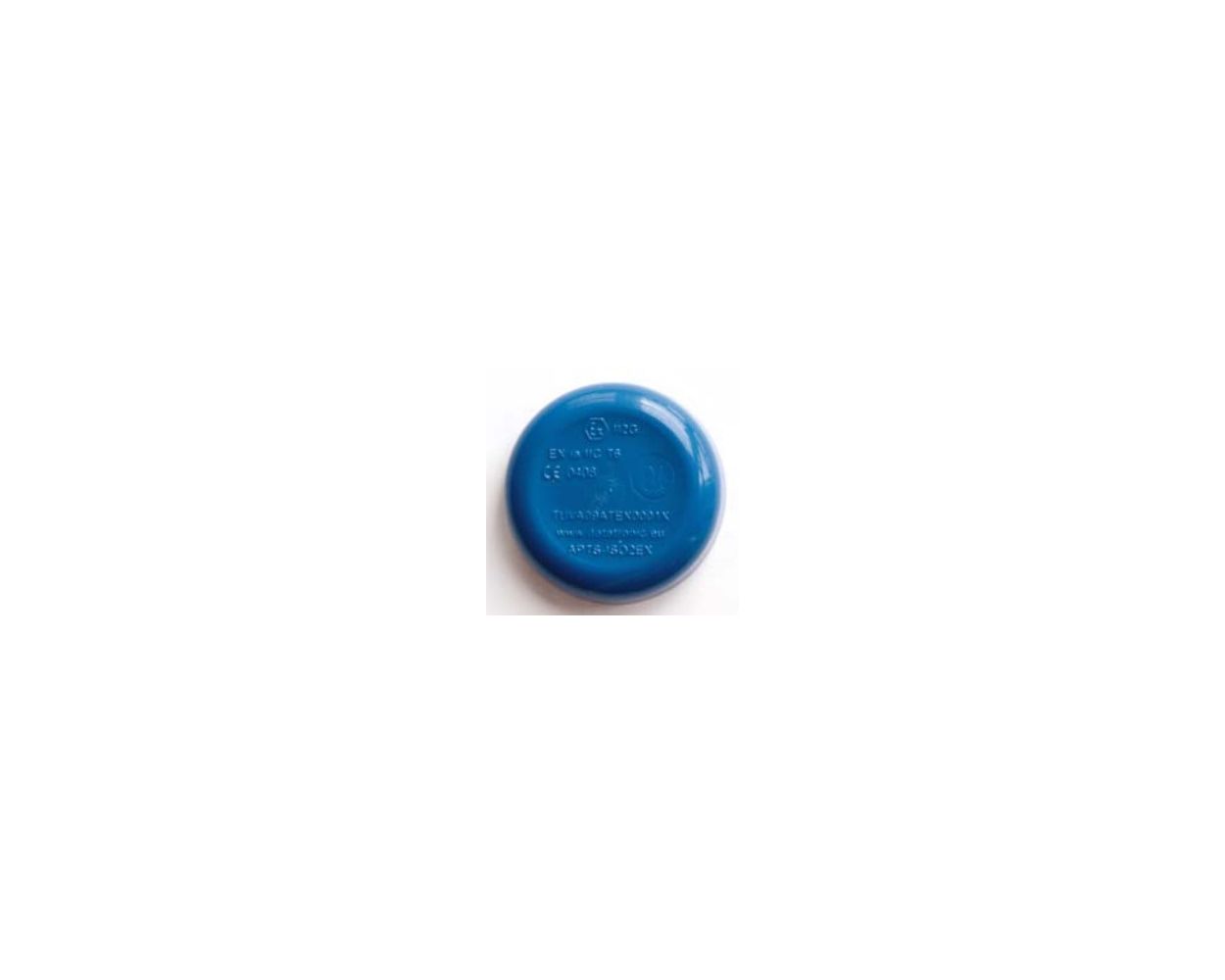

RFID Ex Transponder for RFID indentification

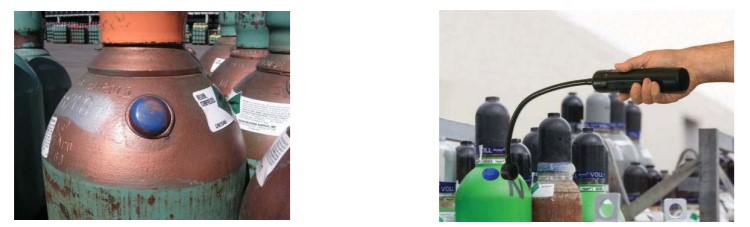

Individually applicable RFID transponder, which was developed particularly for mounting on metallic articles. The transponder is fixed by means of adhesives. Application e.g. on steel tanks and containers, gas bottles, milk container, garbage container. In the service range as data media for the transacted work and as falsification safe ID in the rental business of devices

Technical Data:

Article number: APTS - ISO2Ex
Transponder IC Technology = HF
Resonance frequency = 13,56 MHz
ISO = ISO 15693, 18000-3 Mode 1 and Mifare and NFC
IC Type = NXP SLIX, SLIX-S, NFC, My-D, TI, etc...
Memory (Read / Write) = Up to 10 kbit according to the Chip-Type
Design = durable housing, Inlay poured with two-components resin
Ex - protection class = II 2G Ex ia IIC T6
Face material = durable housing from ABS, examined after MIL, UL certified
Size transponder = d = 30 mm, h = 7 mm
Size antenna = Inlay with 20 mm DM
Weight = 7 g
Operating temperature = - 40 up to + 85 °C, for a short time > 100 °C, in the Ex range max. + 45°C
Storage temperature = recommended 20 °C + / - 5°
Protection class, water-resistant = IP 68
Colour = Blue, other colours on request (white, black, orange,..)
Application to metal = yes
Chemical resistant: yes/no = yes, test recommended

Type of mounting=
stick, we recommend a glue Bostik ISR70-08, www.bostik.nl if you wish we will
deliver the glue with the Tags. We establish with pleasure a contact with the
company Bostik.

Printability = screen print, pad printing, laser printing
RoHS = according to EU directive 2002/95/EC
Applications = RIFD project gas bottles, milk container, garbage container
Order quantities = On request
Price = On request

Downloads

 RFID_Ex_Transponder_for_RFID_identification-comm-co.pdf
