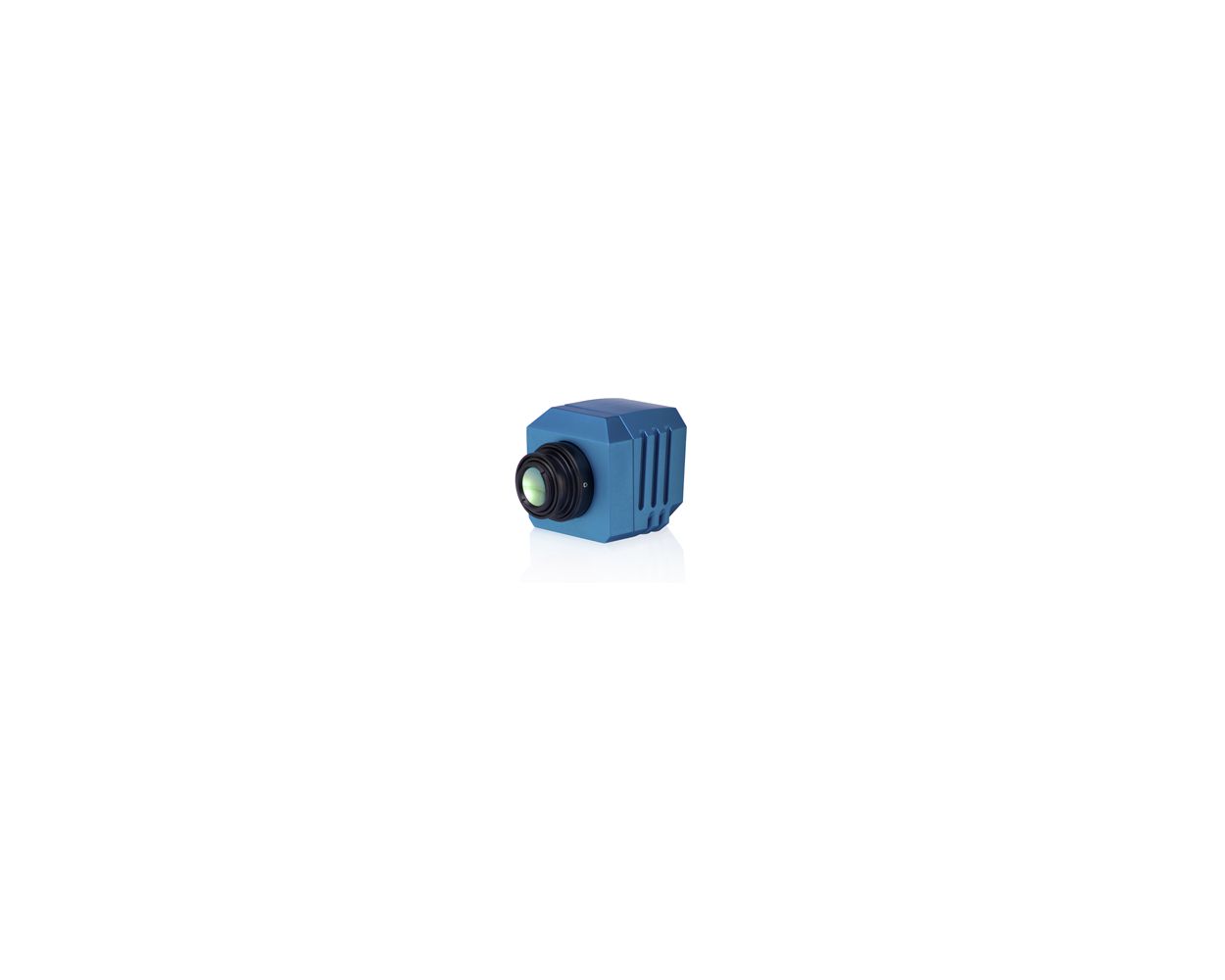

Rugged Infrared Imaging Camera Raven 384
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
The Rugged Infrared Imaging Camera Raven 384 is specifically designed for the security market. The Infrared Camera has a crips and clear thermal image, even under difficult weather conditions and in complete darkness without use of illumination.
Rugged Infrared Imaging Camera Raven 384
The ultimate rugged security camera
The Rugged Infrared Imaging Camera Raven 384 is specifically designed for the security market. The Infrared Camera has a crips and clear thermal image, even under difficult weather conditions and in complete darkness without use of illumination. The Thermal Imaging Camera is can be configured with various lenses for short, medium and long range and has a camera interface for PAL/NTSC video for a regular cctv network or optional ethernet for digital LAN.
The Rugged Thermal Imaging Camera Raven 384 has a resolution of 384 x 288 pixels and offers the most reliable detection of even the smallest temperature change and the smallest object. The Raven 384 thermal imaging camera has a built in Digital Signal Processor which turns the camera into a smart camera.
Specifications
| Array Type: | Uncooled microbolometer (a-Si) |
| Pixels And Pitch: | 384 x 288; 25 micron pitch |
| Array operability: | > 99,9% |
| Operating Temp Range: | -40C to +50C |
| Storage Temp Range: | -50C to +85C |
| Focal Length: | 199 mm f/1.1 |
| Non uniformity Correction: | DSP controlled, shutterless option |
| Analog Out: | PAL (CCIR) or NTSC (RS 170) |
| Camera Control: | Optional Ethernet (TCP/IP) |
| Power Consumption: | 3,4 W |
| Power Supply: | 12 V |
| Dimensions: | 74 x 70 x 65 mm3 (without lens) |
| Weight Camera Head: | < 500g without lens |
| Shock: | 70 G, 2ms halfsine profile |
| Vibration: | 2 G (5Hz to 500Hz) |
| Humidity: | 5% -95% non condensi |
