ULTRA 3 | ATEX LED-FLOODLIGHT
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

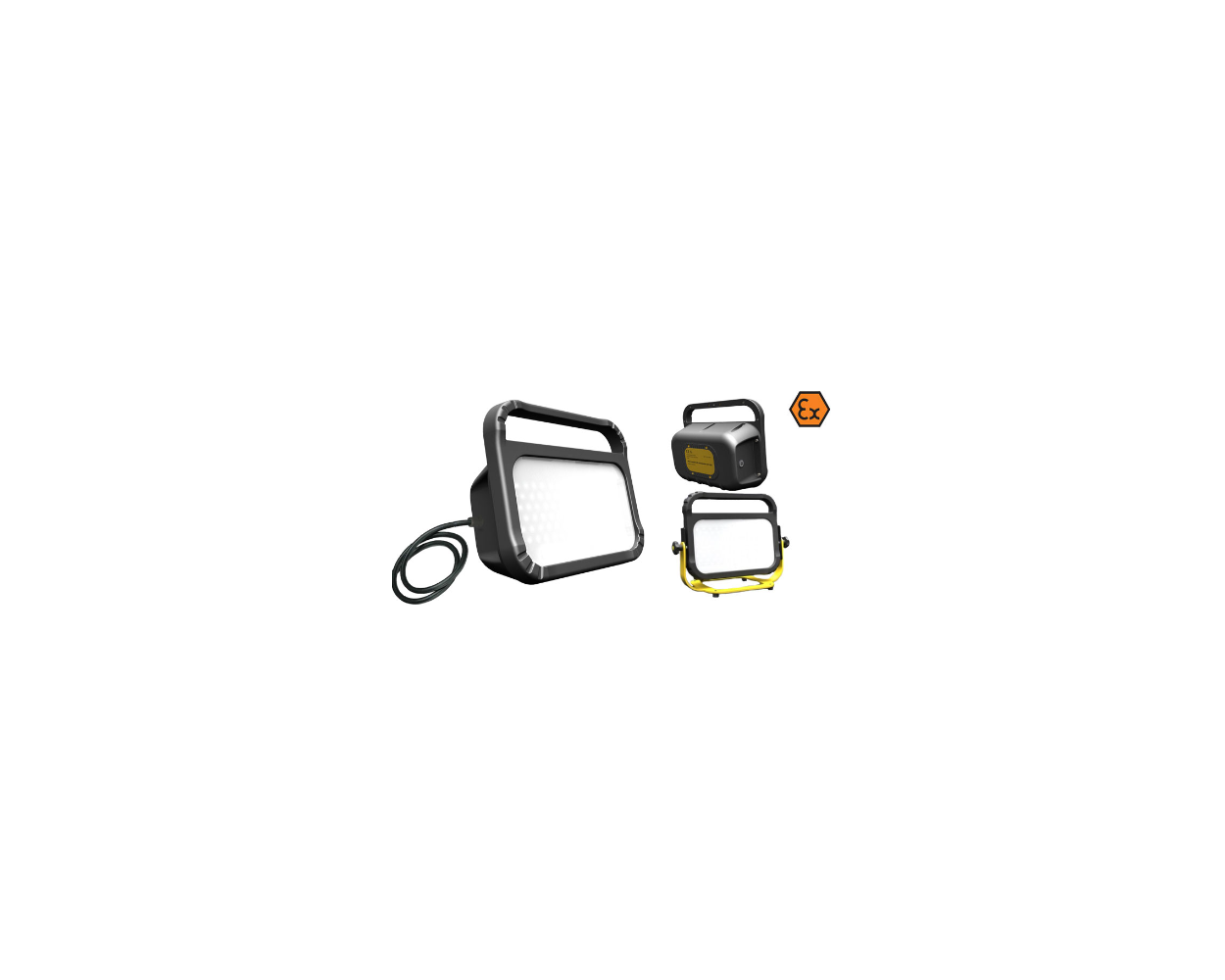

ULTRA 3 | ATEX LED-FLOODLIGHT
The explosion-proof LED spotlight ULTRA 3 is the successor of the renowned Ultra 1 LED spotlight. Thanks to its low weight and extraordinary robustness, it is the ideal lighting solution in demanding and harsh environments. The spotlight is flexible horizontally or vertically openable. Optional accessories such as telescopic stands or magnetic brackets are available]
ATEX IDENTIFICATION
II 2 G Ex ib mb IIC T4 Gb | Tool group: II | Hazardous zone: 1 and 2, 21 and 22
II 2 D Ex ib mb IIIC T130° Db | Category: 2G and 2D | Temperature class T4
ULTRA 3 LED Floodlight:
Illuminant 81x Power LEDs, 5000K
Power 35 W
Luminous flux
ca. 4100 Lumen
Voltage 24V - 48V AC/DC
Housing plastic, antistatic
LED cover reinforced glass with protective foil
Plug without (on request available)
Protection (IP)
IP65
Fixing optional on request
Cable 10 m H07RN-F 2 x 2,5 mm² (opt. 30m)
Plug without (ATEX plug on request)
Weight c. 4,5 kg
Temperature range
-20°C - +50°C
Zones 1, 2, 21, 22
Gas explosion protection ATEX II 2 G Ex ib mb IIC T4 Gb
Dust explosion protection ATEX II 2 D Ex ib mb IIIC T130° Db
