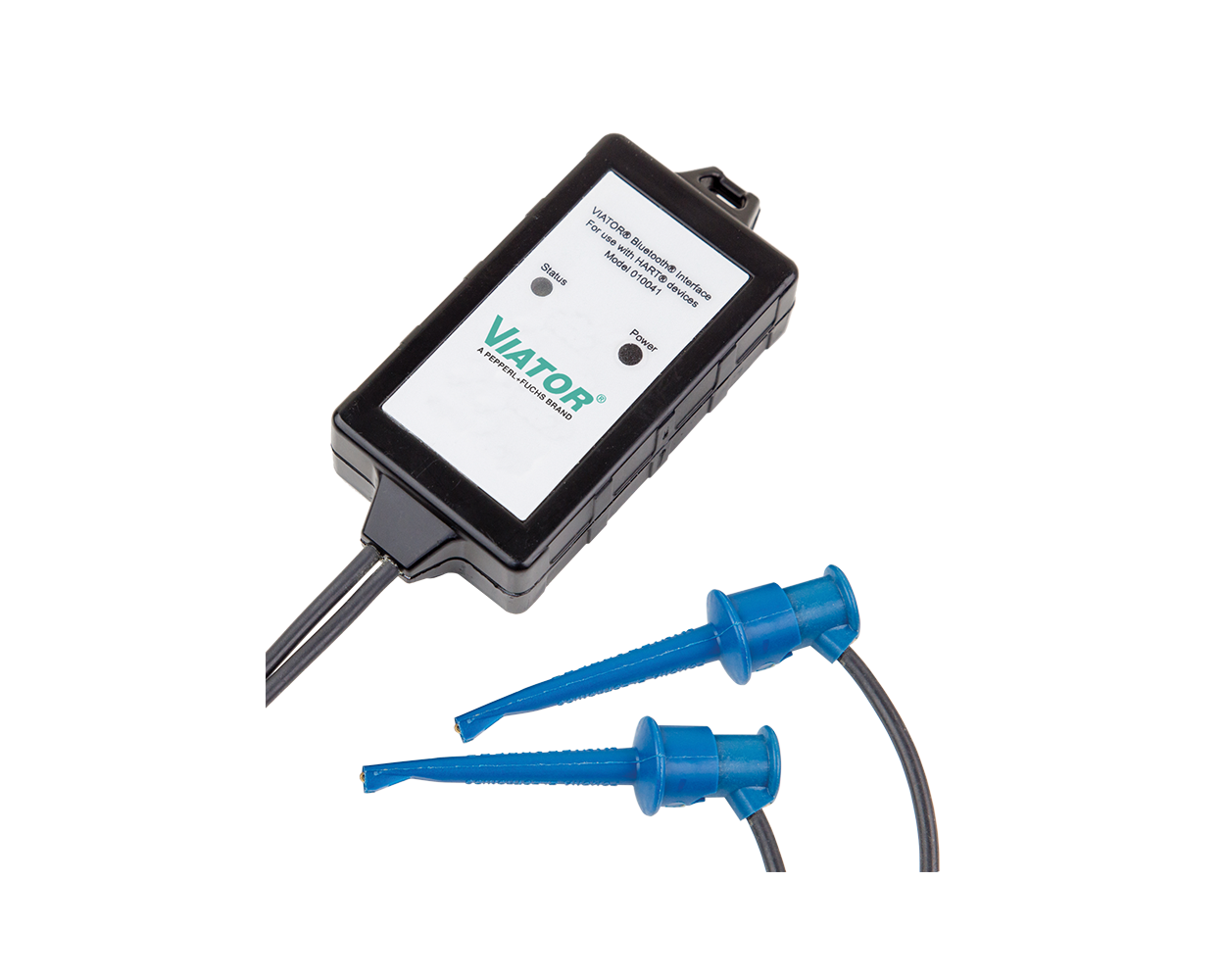

Viator Bluetooth HART Interface Modem HM-MT-BT-EX-010041

End of life
^*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

SKU

42326154

The Viator Bluetooth Interface is a point-to-point HART modem for temporary wireless connection to HART field devices. The modem is operated by replaceable AAA batteries and can operate for approximately 20 hours.

Interface for wireless communication between PC host and any HART field device
Registered with HART Communication Foundation
ATEX and IECEx approval
UL listed for North America
Powerful, high-speed Bluetooth with 100 m open-air range
Adaptive frequency hopping to reduce radio-frequency interference
HARTCommDTM software supports use with FDT Frame applications
Compatible with 32- and 64-bit Windows® 7, 8, XP, 10, or Vista

Details

Viator Bluetooth HART Interface Modem HM-MT-BT-EX-010041

*This product is compatible with: Tab-Ex 02 DZ1 - Tab-Ex 02 DZ2 - Smart-Ex 02 DZ1 - Smart-Ex 02 DZ2

Interface for wireless communication between PC host and HART field device
The Viator Bluetooth Interface is a point-to-point HART modem for temporary connection to HART field devices.

The modem is operated by replaceable AAA batteries and can operate for approximately 20 hours. It attaches to a HART field device with 18-inch leads and test clips. The PC host uses an internal Bluetooth interface or a USB-to- Bluetooth converter to communicate with the modem.

Product specifications

Electrical specifications:
Battery type	3 x AAA-size batteries, 1.5 V DC, alkaline cells, type LR03, Energizer® EN92
Operating duration	approx. 20 h (continuous operation)
Interface:
Physical	Bluetooth v2.0, Class 1, EDR
Transmitter frequency	2402 ... 2480 MHz (Bluetooth)
Transmitter radiated power	18 dBm
Detection range	100 m in air
Antenna	integrated omnidirectional
Output:
Signal	HART-compliant trapezoidal wave at 1200/2200 Hz
Directive conformity:
Radio and telecommunication terminal equipment
Directive 2014/53/EU	EN 300 328 V2.1.1 , EN 301 489-17 V3.1.1
RoHS
Directive 2011/65/EU (RoHS)	EN 50581:2012
Ambient conditions
Operating temperature	-20 ... 50 °C (-4 ... 122 °F)
Storage temperature	-20 ... 60 °C (-4 ... 140 °F)
Relative humidity	0 ... 95% , non-condensing
Mechanical specifications:
Degree of protection	IP20
Connection	HART I/O Interface cable , 20 AWG fine-strand , termination test clips
Material	Polycarbonate
Dimensions	88 mm x 42 mm x 19 mm
Cable length	0.5 m
Data for application in connection with hazardous areas:
EU-Type Examination Certificate	CML 16 ATEX 2379
Marking	II 1G Ex ia IIC T4 Ga , -20 °C ≤ Tamb ≤ 50 °C
Directive conformity
Directive 2014/34/EU	EN 60079-0:2012 / A11:2013 , EN 60079-11:2012
International approvals:
UL approval	E106378
Approved for	Class I, Div. 1 or Div. 2 Groups A, B, C, D T4 Class I, Zone 0, AEx ia IIC T4 Ga; Ex ia IIC T4 Ga
IECEx approval
IECEx certificate	IECEx CML 16.0138
IECEx marking	Ex ia IIC T4 Ga , -20 °C to +50 °C
