ATEX iPad Air 11 (2024) Zone 2 Case - Xciel XCRiPad Air 11

Hazardous area: ATEX Zone 2 (gas only) • II 3G Ex ic IIC T4 Gc • Class I, Division 2 (version installed by Xciel) | Protection: Ex ic (intrinsic safety) • IP54 (version installed by Xciel) | Fits: Apple iPad Air 11 inch (2024, M2) only | Supplied as: case only or complete set with iPad | Manufacturer: Xciel

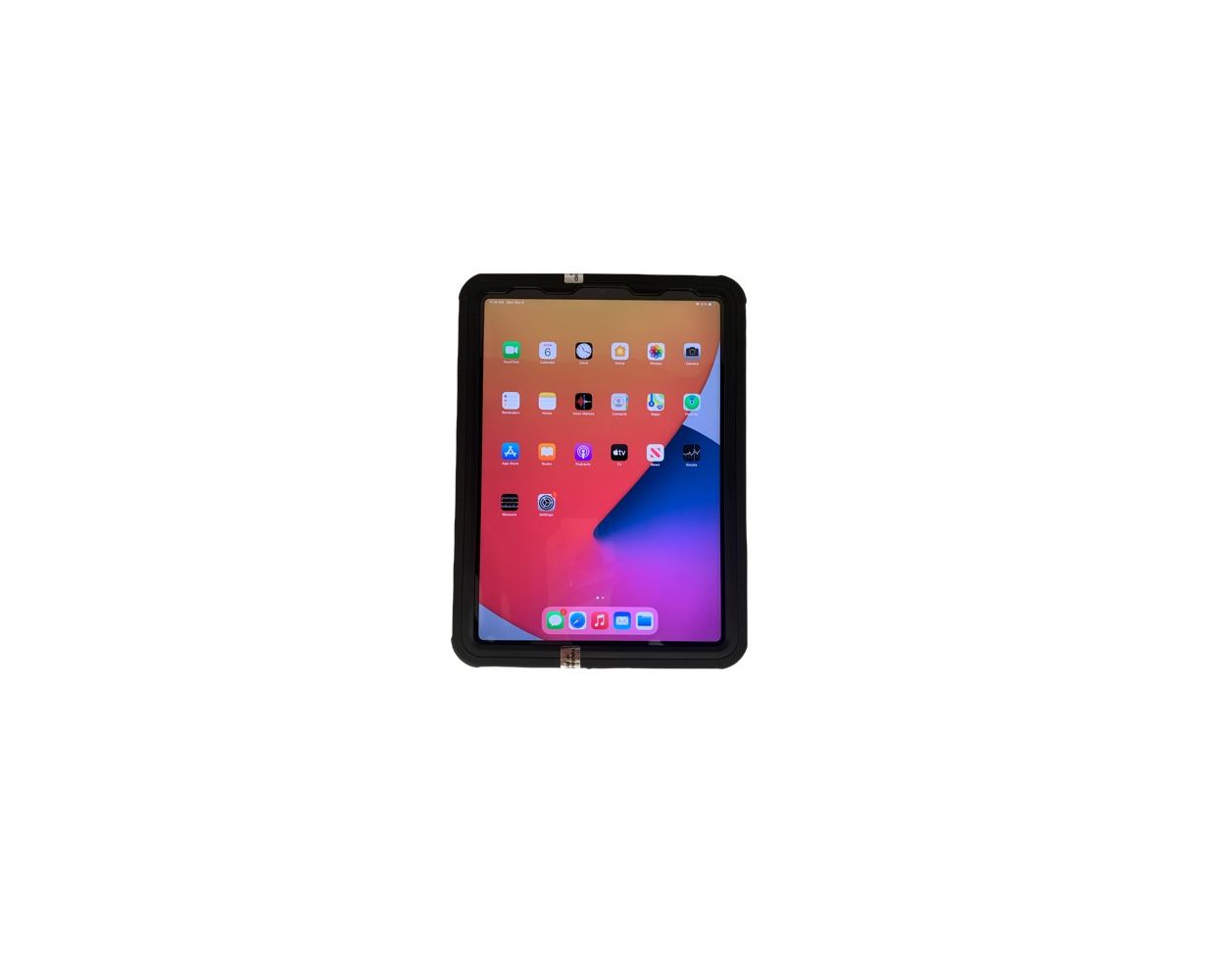

The Xciel XCRiPad Air 11 is a rugged plastic enclosure for the Apple iPad Air 11 inch (2024, M2). It allows the iPad to be used in ATEX Zone 2 areas with explosive gas atmospheres, for buyers looking for an ATEX, intrinsically safe or explosion proof iPad for that zone. The protection concept is Ex ic, intrinsic safety. ATEX listing confirmation TUVNA 24 EX 513X states the protection method Ex ic IIC T4 Gc for an ambient temperature of -20°C to +50°C. The enclosure is not intended for Zone 1 or for dust zones (Zone 21 or Zone 22).

Xciel states that this enclosure is only for the iPad Air 11 inch (2024). The listing confirmation names only the XCRiPad Air 11" 2024 and does not cover other iPad Air generations. You can order the enclosure on its own (Xciel SKU XCRIPADAIR11) or as a complete set with an iPad Air 11 inch (2024). Certificate documentation is available on request.

Configurations and prices

Mention the order code of the configuration you need in your order or quote request.

Wi-Fi + Cellular configurations of the iPad Air 11 inch (2024) can be quoted on request. Apple's current iPad Air is a later generation, so for complete sets we confirm the availability of the iPad Air 11 inch (2024) with your quotation.

Xciel supplies the case-only option in two versions: an ATEX Zone 2 version that the customer can fit to their own iPad, and a version that also carries the North American Class I, Division 2 rating, for which the iPad is sent to Xciel for installation. Please state in your request which version you need. Once fitted, the iPad must not be removed from the enclosure (see the conditions of use below).

Features

Certification

Specific conditions of use (X)

Listing confirmation TUVNA 24 EX 513X carries the X suffix. The following special conditions apply:

• Warning, explosion hazard: do not connect or charge/recharge the equipment unless the area is known to be non-hazardous.
• Use only an Apple-recommended AC charger.
• The tablet must not be removed from the case.
• The equipment shall not be rubbed or cleaned with solvents or a dry cloth when used within a potentially explosive atmosphere.

The Class I, Division 2 certificate LC22375-1 adds the following conditions of acceptability:

• No other equipment shall be connected to the device while in the hazardous area.
• The device shall not be charged while in a hazardous area.
• Audio jack and data/charger port connections are not intended to be connected or disconnected in hazardous locations.

Technical specifications

Enclosure

iPad Air 11 inch (2024, M2) in the complete sets

Data according to Apple's technical specifications for the iPad Air 11-inch (M2).

Applications

The XCRiPad Air 11 is intended for professional use in Zone 2 areas with explosive gas atmospheres, for example in chemical and petrochemical plants, oil and gas facilities and pharmaceutical production. Typical tasks include:

• Inspection and maintenance rounds
• Digital checklists and work permits
• Documentation and reporting on site
• Access to drawings, procedures and manuals in the field

Documentation

• Xciel product page XCRiPad Air 11" 2024 (manufacturer website)
• Xciel rugged iPad range (manufacturer website)
• Apple iPad Air 11-inch (M2) technical specifications
• ATEX listing confirmation TUVNA 24 EX 513X: available on request
• LabTest certificate of conformity LC22375-1 (Class I, Division 2): available on request
• Xciel does not publish a model-specific datasheet for this enclosure.
