ATEX iPad Pro 11 (2024) Zone 2 Case - Xciel XCRiPad Pro 11

Hazardous area: ATEX Zone 2 (gas only) • Class I, Division 2 (North America, Xciel-installed version) | Protection: Ex ic IIC T4 Gc (intrinsic safety) • IP54 (Xciel-installed version) | Fits: Apple iPad Pro 11 inch (2024, M4) only | Manufacturer: Xciel

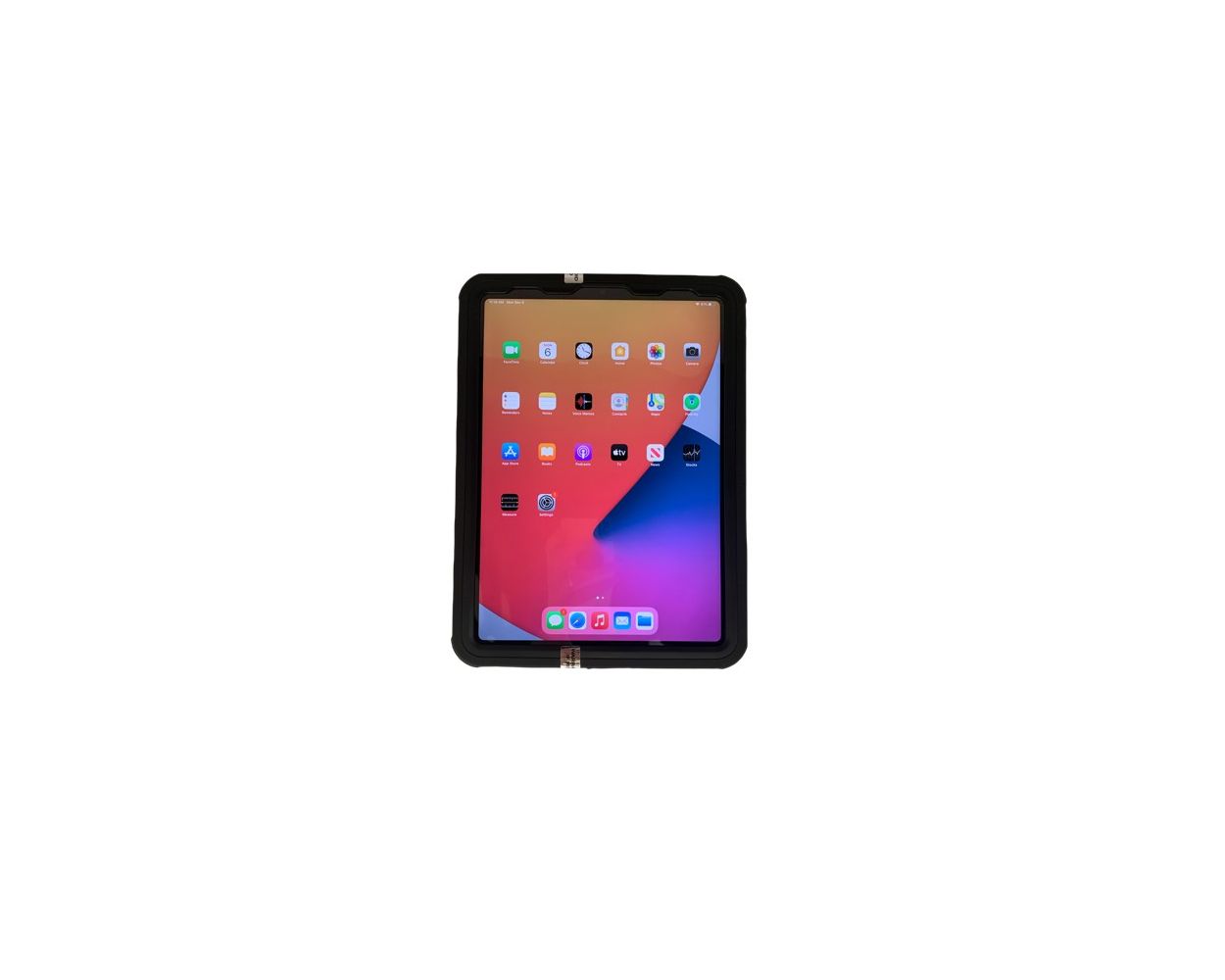

The Xciel XCRiPad Pro 11 (2024) is a rugged enclosure for the Apple iPad Pro 11 inch (2024) with M4 chip. It is intended for Zone 2 gas areas, for buyers looking for an ATEX, intrinsically safe or explosion proof iPad Pro case for that zone. The protection concept is intrinsic safety at protection level ic: the listing confirmation states the protection method Ex ic IIC T4 Gc for an ambient temperature of -20°C to +50°C. The case is not intended for Zone 0 or Zone 1, or for dust zones (Zone 20, 21 and 22).

The ATEX basis is listing confirmation TUVNA 25 EX 543X, issued by TÜV Rheinland of North America on 25 February 2025. For North America, the version installed by Xciel also carries Class I, Division 2, Groups A, B, C, D, T6 and IP54 under LabTest certificate LC22379-1. There is no IECEx certificate for this case.

You can order the case on its own, for an iPad Pro 11 (2024) you already have, or as a complete set with an iPad Pro 11 (2024) Wi-Fi. Xciel states that this case is only for the iPad Pro 11 (2024). The case is not listed for the iPad Pro 11 with M5 chip. Xciel offers separate cases for earlier iPad Pro 11 generations.

Configurations and prices

Mention the order code of the configuration you need in your order or quote request.

Apple's current iPad Pro 11 has the M5 chip, while this case is listed for the 2024 model with M4 chip. Complete sets therefore depend on the availability of the iPad Pro 11 (2024). We confirm availability with your quote.

Features

Certification

For equipment intended for Zone 2 (category 3), Directive 2014/34/EU allows conformity assessment by internal production control, without an EU-type examination by a notified body. The listing confirmation states that it relates only to the design and construction of the equipment at the time of evaluation, and that it is the manufacturer's and supplier's responsibility to verify that the product meets all applicable requirements of the Directive.

Specific conditions of use (X)

The listing confirmation TUVNA 25 EX 543X states these special conditions:

• Explosion hazard: do not connect or charge the equipment unless the area is known to be non-hazardous.
• Use only an Apple recommended A/C charger.
• The tablet must not be removed from the case.
• The equipment shall not be rubbed or cleaned with solvents or a dry cloth when used within a potentially explosive atmosphere.

The LabTest certificate LC22379-1 adds as conditions of acceptability that no other equipment shall be connected to the device while in the hazardous area, and that the device shall not be charged while in a hazardous area. Always follow the certificate documentation and the manufacturer's instructions.

Technical specifications

Case

Apple iPad Pro 11 inch (2024, M4) in the complete sets

Applications

The XCRiPad Pro 11 (2024) is intended for Zone 2 areas with explosive gas atmospheres, for example in chemical and petrochemical plants, oil and gas facilities, pharmaceutical production and tank storage. Typical tasks are inspection rounds, digital checklists and work orders, maintenance documentation with the iPad camera, and access to drawings and manuals on site. The case is not for Zone 0 or Zone 1, for dust zones (Zone 20, 21 and 22) or for mining.

Documentation

• Xciel product page XCRiPad Pro 11" 2024
• Xciel overview of rugged iPad enclosures
• Apple iPad Pro 11 inch (M4) technical specifications
• ATEX listing confirmation TUVNA 25 EX 543X and LabTest certificate LC22379-1: available on request

Xciel does not publish a separate datasheet for the 2024 version of this case.
