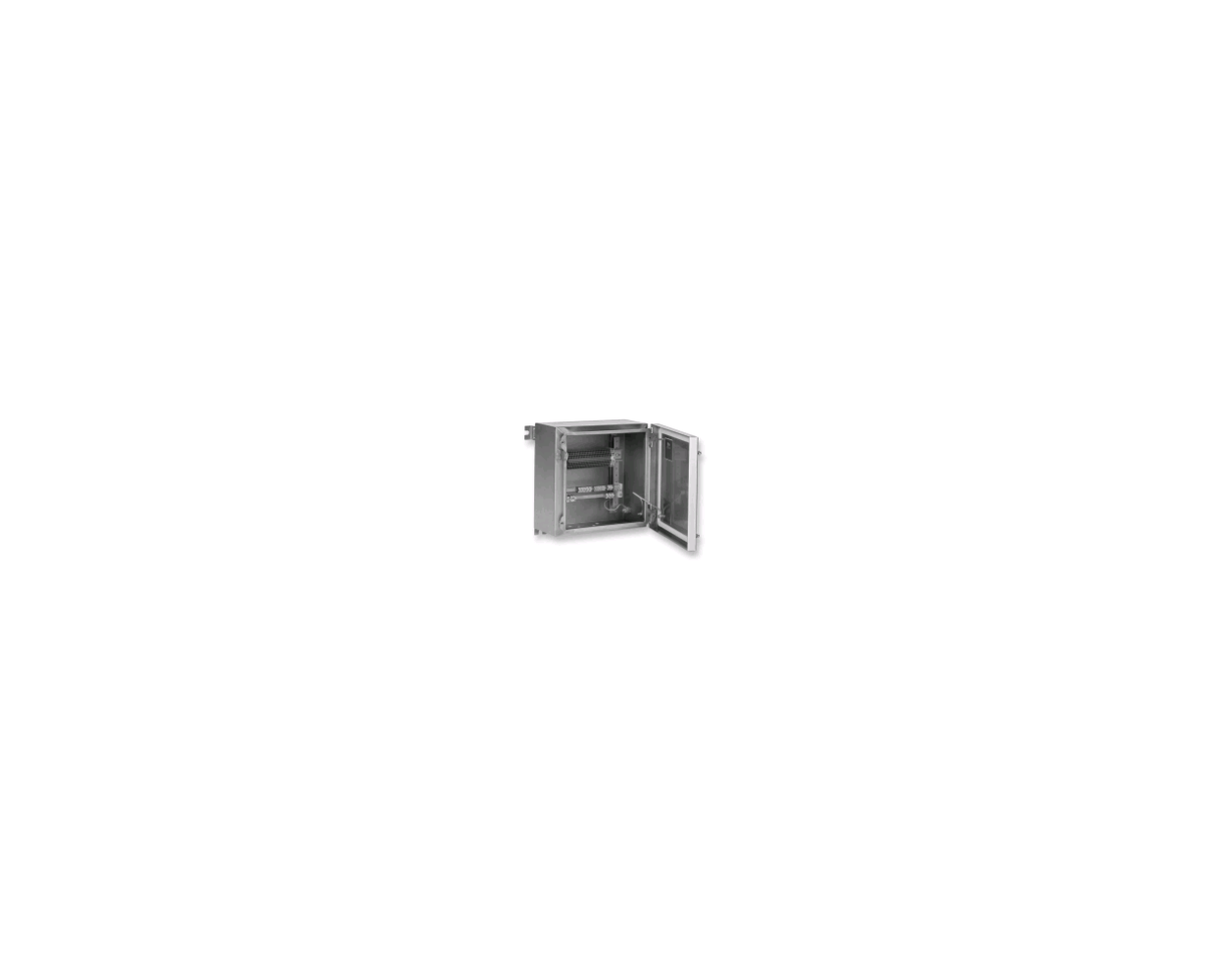

The CUBO X is an ATEX Zone 1 certified stainless steel enclosure that can be used in an ATEX environment. The enclosure is suitable for Ex i, Ex e and Ex tD protection types.

The product can be used in temperatures from -55 Degrees celsius to +40 Degrees celsius. The protection the is IP66, and you can choose for IP67.

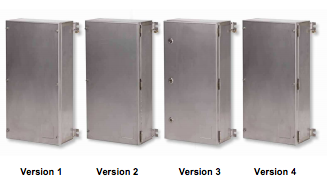

There are 4 versions available of the product, when you choose for version 1 the cover is fastened with screws and is connected with a ground strap. Version 2 uses tight hinges and cover screws on the opposite side. When you choose for version 3 there are also tight hinges, and one or several locks. Note that the version 3 quarter turn latch certificate is still pending. There is also an version 4 available, at the version 4 the cover is fastened with screws as in version 1. Difference is that in this version the cover is secured with hinges that enable its free movement.

The CUBO X can for example be used in a situation where you have an product that is not ATEX Certified, but that you want to use in an ATEX environment. When the product is within the temperature range (from -55 to +40 Degrees celsius), it can be placed in the CUBO X, and you can use it in an ATEX Environment.

If you want more information about this product, please fill in our contactform or call us at +31 (114) 370030

Specifications:

• Type of protection: II 2G Ex e IIC Gb
• Type of protection: II 2D Ex t IIIC Db
• Class of temperature: -55 to +40 Degrees celsius
• Protection degree: IP66 or IP67
• Can be used in ATEX Zone 1 or Zone 2
• Suitable for Ex i, Ex e and Ex tD

Downloads

 CUBO_X_ATEX_stainless_steel_enclosure_EN.pdf
