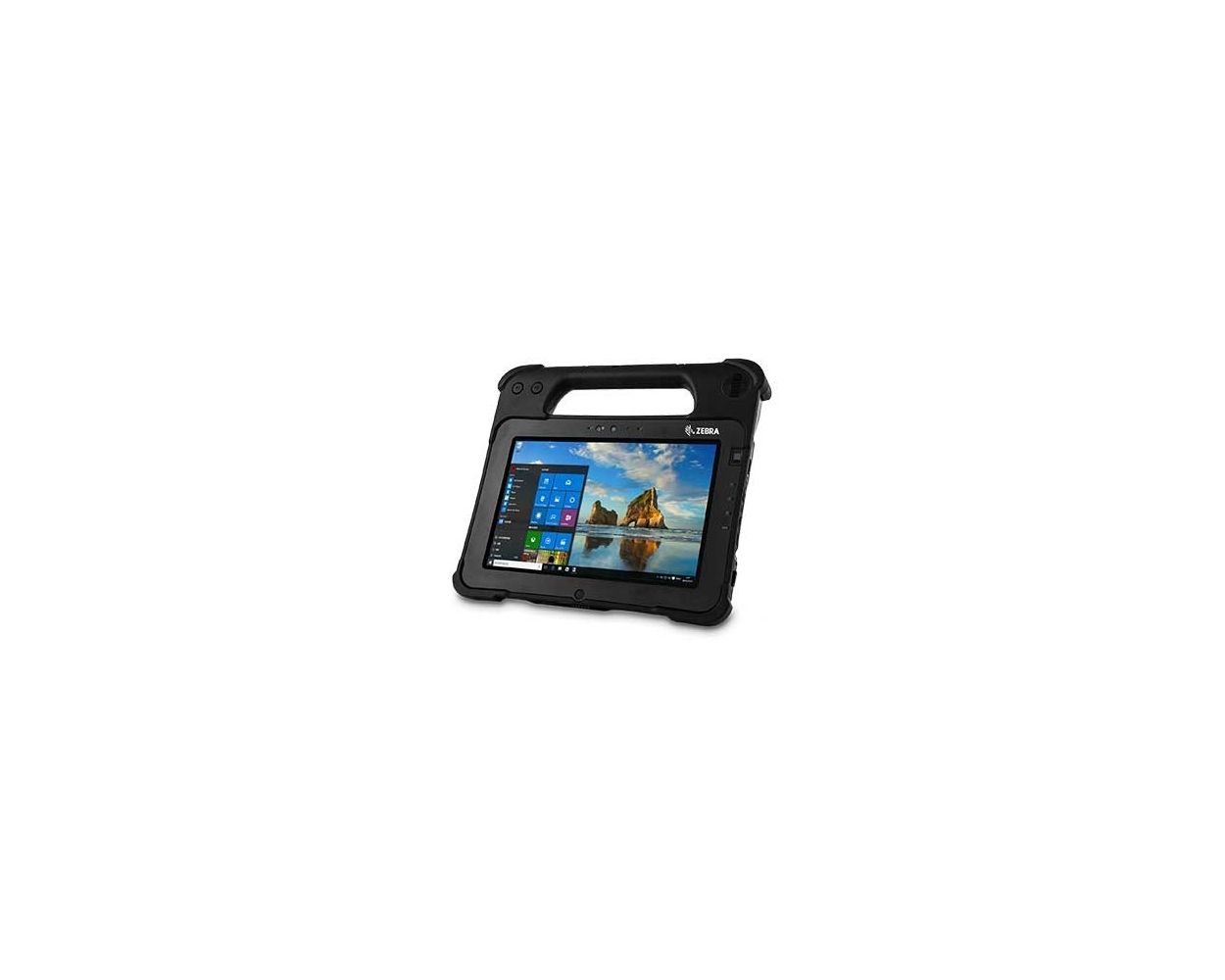

Zebra XPAD L10 Rugged Tablet (EOL)

€4,309.20
*Price may change due to echange rate.
SKU
42326061
SAP Item ID
42326061

While the XPAD L10 Rugged Tablet computer may be best recognized for its ergonomic rigid handle, it is also known for its field-proven, industrial-grade durability – especially among those in field service and industrial sectors who spend their days walking and working. The optional barcode reader is built into the handle to expedite data input and verification tasks.

Zebra XPAD L10 ATEX ZONE 2, BT, WLAN, 4G, NFC, GPS, Win. 10 Pro

(END OF LIFE)

THE ULTIMATE IN POWER

Pick the correct force for the work

Get all the force you need for unrivaled execution on the entirety of your applications and projects with your decision of a portion of the world's most impressive processors and a lot of memory — or pick a Pentium CPU for lower cost and longer battery life.

Unequaled battery power — and battery the board

Get full shift power with the standard battery and an entire 24 hours of force with the all-inclusive battery. With a removable hot-swappable battery, your L10 tablets are consistently in help — never in a charging dock. What's more, with a discretionary charger, an extra battery is consistently all set.

THE ULTIMATE IN RELIABILITY AND USABILITY

A worked to-last rough plan

This waterproof, dustproof and drop-evidence tablet is worked to deal with everything. Drop it on concrete. Get it wet — regardless of whether the port covers are open. Use it in outrageous warmth and freezing cool, inside a truck, vehicle or forklift — or where risky materials are present.1 And the lightweight magnesium outline is more grounded than steel and will not curve, so you get solidness without adding weight.

An enormous 10.1 in. show with the appropriate highlights

Basically nothing prevents clients from entering data on the high level multi-contact show — including gloves, downpour and snow. Clients can pick their favored information section mode, finger or pointer — detached or dynamic. Corning Gorilla Glass conveys greatest scratch-and-effect protection from this most weak gadget part. The brilliant 500 nit show is not difficult to see in pretty much any lighting condition, while the discretionary super splendid 1000 nit View Anywhere® show is not difficult to see, even in direct daylight.

THE ULTIMATE IN PRODUCTIVITY WITH ENTERPRISE DATA CAPTURE

Front and back cameras for twofold the usefulness

Empower video calling with the 2 MP front shading camera, permitting your laborers to get the moment on location help they need to determine specialized hardware issues and the sky is the limit from there.

Catch profoundly itemized photographs and recordings with the 13 MP shading back camera — ideal for split-second catch of verification of-condition/conveyance/administration, proof catch, occurrence documentation and then some.

Impeccable catch of for all intents and purposes any standardized identification in any condition

With the coordinated Zebra SE4710 venture class examine motor (discretionary on XPAD L10 no one but), laborers can catch standardized identifications as quick as possible press the sweep button — regardless of whether they are damaged, messy or inadequately printed.

THE ULTIMATE IN CONNECTIVITY

The quickest cell associations

With help for 4G LTE, your laborers are associated from one side of the planet to the other, in metropolitan and distant regions — in vehicles or by walking, inside and out. Also, with certificate on driving public help organizations, including AT&T FirstNet and Verizon, people on call have the dependable associations they need when crises over-burden the business organizations.

Longer WiFi reach and speed — with less force

2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) innovation permits passages to speak with different gadgets all the while by means of pinpoint beamforming, boosting WiFi network limit, speed and reach. Furthermore, handling is moved from the cell phone to the passage, expanding battery process duration.

Greater network alternatives for quicker and more adaptable correspondences

Standard Bluetooth 4.2 and support for Gigabit Ethernet, in addition to alternatives for NFC, GPS and UHF RFID implies continually being associated.

THE ULTIMATE IN MANAGEABILITY

Simple to get and oversee

Each of the three models are based on a typical Windows 10 Pro stage, offering different security choices. Confided in Platform Module (TPM) 2.0 works on the choice and execution of various degrees of safety for various clients. Backing for Smart Card, Common Access Card (CAC) and a unique finger impression peruser control admittance to the information and applications on L10 tablets. Furthermore, a Kensington lock space ensures against burglary.

L10 XPAD/XBOOK/XSLATE SPECIFICATIONS

Physical Characteristics

Dimensions XSLATE: 11.0 in. L x 7.7 in. W x 0.88 in. D
280.8 mm L x 195.2 W mm x 22 mm D
XPAD: 11.0 in. L x 10.0 in. W x 0.88 in. D
280.8 mm L x 255.9 W mm x 22 mm D
XBOOK: 11.0 in. L x 8.3 in. W x 2.36 in. D
280.8 mm L x 210.8 W mm x 60 mm D
Weight XSLATE: 2.8 lbs/1.3 kg2
XPAD: 3.1 lbs/1.4 kg2
XBOOK: 4.63 lbs/2.1 kg2
Frame Magnesium alloy internal frame with external elastomer corner bumpers
Display 10.1 in. 2K resolution display
WUXGA 1920 x 1200 (16:10)
- Standard 500 Nit capacitive
- View Anywhere® 1000 Nit capacitive
- View Anywhere 1000 Nit with active
Wacom® digitizer
Corning® Gorilla® Glass 3
Capacitive 10-point touch
Contrast ratio = 800 : 1
Wide viewing angle ±89°
Standard user replaceable anti-glare screen protector — 3H hardness
Auto-sensing standard, glove and wet touch
Night vision mode supported on Active View Anywhere Display only
Graphics N4200 CPU
- Intel® UHD Graphics 505
Core i5 & i7 CPUs
- Intel® UHD Graphics 620
Battery Life & Power Standard battery: up to 10 hours3
Extended battery: up to 27 hours3
Battery charge time:
- Standard battery: 2.75 hours with system off4
- Extended battery: 3.25 hours with system off4
Standard bridge battery (1 minute swap time)
- Hot swap battery feature comes standard
Input Voltage: 12-20V, AC Adapter: 19V
Ports/Connectivity Docking connector
(2) USB 3.0 ports
USB Type-C port (USB 2.0, USB 3.0, Display Port out)
3.5 mm audio output (stereo out, mono in)
RJ-45 ethernet port
Dual Nano SIM (4FF)
Micro-SDXC
Expansion Slot Micro-SDXC
Integrated Options NFC
Optional 1D/2D barcode reader (XPAD only)
Optional True RS232 serial, or
Optional HDMI-In, or
Optional CAC / Smart Card reader, or
Optional UHF RFID reader (AEI)
Rugged Keyboard Included with XBOOK: backlit; IP65; 3.2 ft./1 m drop specification; kick strap/stand (rugged keyboard is optional for the XSLATE and XPAD)
Security Integrated fingerprint reader
Trusted Platform Module (TPM) 2.0
Optional CAC / Smart Card reader
Status Indicators System status, battery status, camera active, SSD activity
Audio Intel High Definition audio
Realtek® HD Codec
RealTek noise cancellation
Multi-directional array microphone
- 2 microphones (2 front facing array mic)
XPAD: 1 front facing speaker
XSLATE/XBOOK: 1 rear facing speaker

Performance Characteristics

Operating System Windows® 10 Pro 64-bit
Processor

8th Generation Intel® Core™ i7 vPro™ processor –
8650U (LPDDR3, 1.90 GHz with turbo frequency to 4.20 GHz)

8th Generation Intel® Core™ i5 vPro™ processor –
8350U; (LPDDR3, 1.70 GHz with turbo frequency to 3.60 GHz)

8th Generation Intel® Core™ i5 processor – 8250U;
(LPDDR3, 1.60 GHz with turbo frequency to 3.40 GHz)

Intel® Pentium® processor N4200; (LPDDR4,
1.10 GHz with turbo frequency to 2.50 GHz)

Memory 4 GB (Pentium N4200 only)
8 GB (Pentium N4200 & Core i5 8250U only)
16 GB (Core i5 vPro 8350U & Core i7 vPro 8650U only)
Storage Options

N4200 CPU:
64 GB SATA SSD, 128 GB SATA SSD, 256 GB SATA SSD, 512 GB SATA SSD

Core i5 & i7 CPUs:
128 GB PCle SSD, 256 GB PCIe SSD, 512 GB PCIe SSD, 1 TB PCIe SSD

User Environment

Operating Temperature -4° F to 140° F/-20° C to 60° C; MIL-STD-810G
Storage Temperature -22° F to 158° F/-30° C to 70° C; MIL-STD-810G
Thermal Shock -22° F to 158° F/-30° C to 70° C within five (5)
minutes, non-operating; MIL-STD-810G
Drop Specification MIL-STD-810G:
6 ft./1.83 m drops to plywood over concrete 4 ft. drops to concrete
Sealing IP65
Hazardous Environments C1D2 (Class 1 Division 2) for hazardous locations1
Vibration Minimum integrity non-operating, composite wheel operating; MIL-STD-810G
Shock 40G operating; MIL-STD-810G
Humidity 3% to 95% non-condensing, -22° F to 140° F/-30°C to 60°C, 5 cycles of 48Hr; MIL-STD-810G
Water Proofing Method 506.5 - Procedure I, wind speed 40 mph, 4 inches per hour, 4 sides; MIL-STD-810G
Blowing Sand 20M/S, rate 1.1g/m3 (+/-.3g) at high temperature of 140° F/60° C; MIL-STD-810G
Blowing Dust Velocity 8.9M/s dust concentration 3.9 g/m3 at high temperature of 140 °F/60° C; MIL-STD-810G
Fluid Contamination 50/50 solution of water and bleach, 50/50 solution of water and hydrogen peroxide, diesel fuel, mineral based oil, Lysol disinfectant, denatured alcohol, isopropyl alcohol; MIL-STD-810G
Altitude Operating: 50,000 ft./15,240 m; MIL-STD-810G

Data Capture

Camera

13 MP rear camera; 2 MP front camera

NFC

Optional

RFID Optional UHF RFID Reader (AEI)
Barcode Scanner Optional on XPAD only: SE4710 1D/2D imager5

Wireless WAN/GPS Data (Cellular)

Radio Frequency Bands

Optional internal wireless (one expansion slot with choice of:
• Sierra Wireless EM7565, 4G LTE with GNSS (GPS + GLONASS + Galileo + Beidou)
• Sierra Wireless EM7511. It is LTE-Advanced with GNSS receiver (GPS + GLONASS, BeiDou, and Galileo)
• Discrete GNSS, Navisys Technology (u-blox) GPS + GLONASS with SBAS (WAAS, EGNOS and MSAS)

Optional Pass-Through antenna includes 5 ports for MIMO WWAN, MIMO WLAN and GPS
AT&T FirstNet Ready certification
Verizon PNTM certification

CBRS Capable (Band 48) - EM7511 Configurations

FirstNet Ready Models Sierra Wireless EM7511: LTE-Advanced with GNSS receiver (GPS, GLONASS, BeiDou, and Galileo satellite systems supported)

Wireless LAN (WiFi)

Radio Intel® Dual Band Wireless-AC 8265 Wi-Fi® plus
Optional Pass-Through antenna includes 5 ports for MIMO WWAN, MIMO WLAN and GPS

Wireless PAN (Bluetooth)

Bluetooth Class 1, Bluetooth® 4.2 (EDR + BLE)

Regulatory

Product Safety UL/CSA 60950-1, 2nd Ed.; IEC/EN 60950-1; AS/NZS 60950-1, 2nd ED.; NOM 019; C1D2, ANSI/ISA 12.12.01-2013 (Hazardous Location)
SAR FCC OET 65 Supplement C; CAN/CSA RSS-102 Issue 5, Safety Code 6; EN 62311, EN 62209-2; EN62209-2:201
EMC FCC Part 15 B, Class B; CAN/CSA ICES-003, Class B; EN55032, Class B; EN 301-489-1; EN 301-489-17; EN 301-489-24; EN 61000-3-2; EN 61000-3-3; EN55024; EN 303 413
Environment California Proposition 65; Battery Charging Systems; RoHS 2 Directive 2011/65/EU; WEEE Directive 2012/19/EU; Battery Waste Directive 2013/56/EU; NMX -1-122-NYCE-2006 (Mexico Energy Consumption); Energy Star Compliant; EPEAT Silver

Accessories

Vehicle dock; industrial dock; office dock; standard and extended batteries; kickstand with extended battery bracket; single bay battery charger; power adapters; companion keyboard; short and long digitizer and passive pens; combination kickstand and rotating hand strap; soft handle; shoulder strap; carry case; screen protectors; screen cleaning cloth

Warranty

Subject to the terms of Zebra’s hardware warranty statement, the L10 is warranted against defects in workmanship and materials for a period of 3 (three) years from the date of shipment. For complete warranty statement, go to: https://www.zebra.com/warranty

Recommended Services

Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support.

Zebra Visibility Services — Asset Visibility Services (AVS) and VisibilityIQTM  Foresight options on any Zebra OneCare support contract deliver the device management data needed to take device uptime, operational efficiency and return on investment to the next level.

Footnotes

1. Requires a Hazardous Locations certified model. Many XSlate and XPad models are C1D2 certified, and some models are ATEX certified.

2. Weight represents approximate system weight measured with a 36WHr battery. Actual system weight may vary depending on configuration, component and manufacturing variability.

3. MobileMark 2014 performance testing software. Battery performance will vary by system configuration. Battery life and recharge estimates will vary based on system settings, applications, optional features, environmental conditions, battery conditioning and user preferences.

4. Approximate charging time. Validated charging from 5% to 90% with system on or system off.

5. Available Q1 2020.

Specifications are subject to change without notice.

*Other models are available on request



For orders under € 450 we charge € 25 order costs.
Prices shown on this website are before taxes, currency changes and shipping costs.
For an accurate price please contact our sales team at info@comm-co.com
